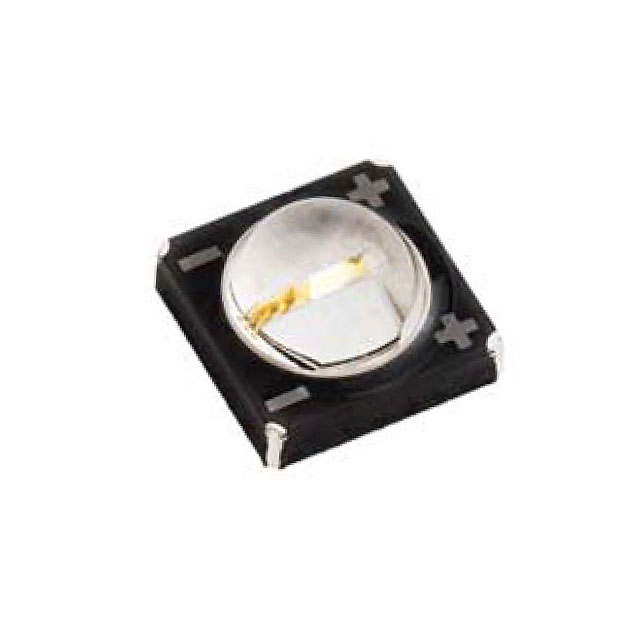

LZ1-U0UAP5-00U5
POWER EMITTERManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM USA INC. LuxiGen™ LZ1 series LZ1-U0UAP5-00U5 is a high-power UV emitter designed for demanding applications. This electronic component delivers a 393nm wavelength output, with a typical forward voltage of 3.7V and a maximum DC forward current of 3A. Featuring an 85° viewing angle and a Star Array package, this surface-mount device is optimized for efficient heat dissipation, supporting an operating junction temperature of up to 100°C. Its robust design makes it suitable for use in industries such as curing, sterilization, and analytical instrumentation. The component is supplied in a tray package.
Additional Information
Series: LuxiGen™ LZ1RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Star Array |
| Wavelength | 393nm (390nm ~ 395nm) |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 100°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 3.7V |
| Viewing Angle | 85° |
| Current - DC Forward (If) (Max) | 3A |
| Radiant Intensity (Ie) Min @ If | - |
