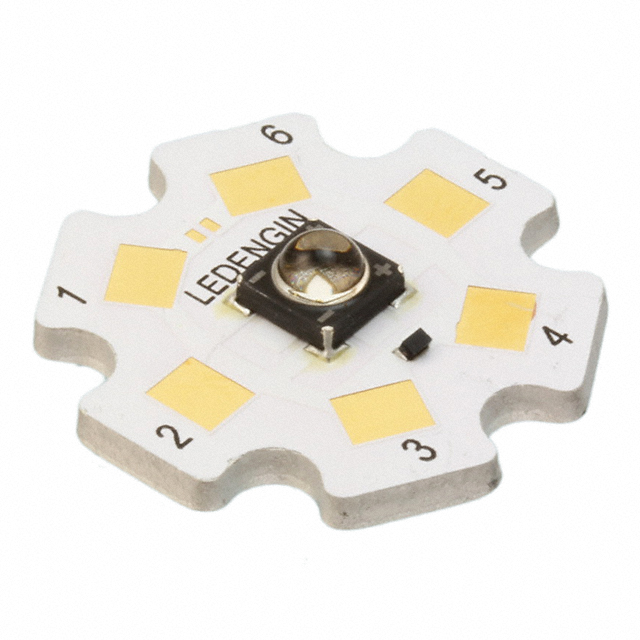

LZ1-10UA00-00U6
EMITTER UV 400NM 1A STARManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. LZ1 series UV emitter, part number LZ1-10UA00-00U6, provides a 400nm ultraviolet output. This Star Array package features a 74° viewing angle and is designed for high-power applications with a DC forward current of up to 1A. The typical forward voltage is 4.1V. Operating at a maximum junction temperature of 125°C, this component is suitable for demanding environments. Its robust construction and specific wavelength output make it ideal for applications in sterilization, curing, and analytical instrumentation. The component is supplied in a Tray package.
Additional Information
Series: LZ1RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Star Array |
| Wavelength | 400nm |
| Mounting Type | Screw Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 125°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 4.1V |
| Viewing Angle | 74° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | - |
