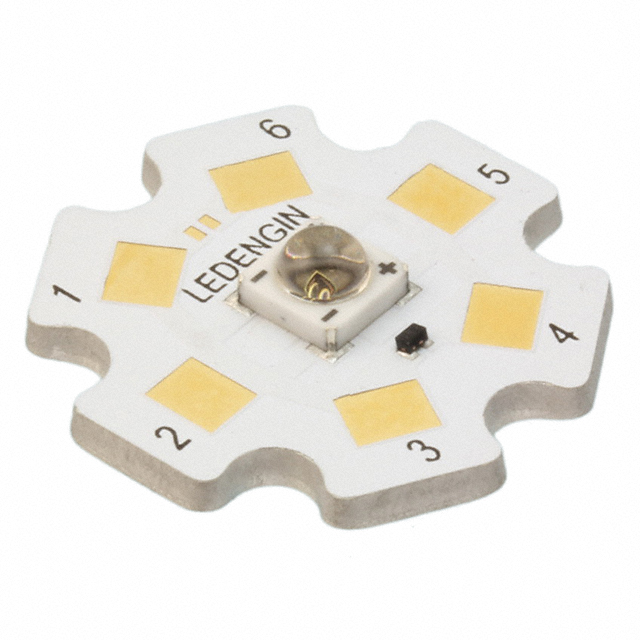

LZ1-10R500-0000
EMITTER IR 940NM 1.2A STARManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM LZ1 series infrared LED emitter, part number LZ1-10R500-0000. This device features a 940nm wavelength and a 90° viewing angle, optimized for robust performance. Designed with a 2.1V forward voltage and a maximum DC forward current of 1.2A, it is presented in a Star Array package for efficient thermal management and mounting via screw mount. The operating junction temperature reaches up to 125°C. This component is suitable for applications in industrial automation, security systems, and proximity sensing.
Additional Information
Series: LZ1RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Star Array |
| Wavelength | 940nm |
| Mounting Type | Screw Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | 125°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Viewing Angle | 90° |
| Current - DC Forward (If) (Max) | 1.2A |
| Radiant Intensity (Ie) Min @ If | - |
