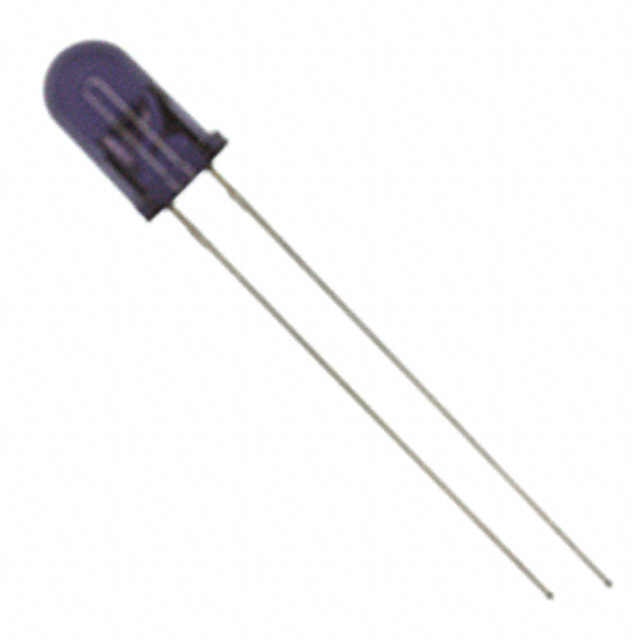

LD 271 LH
EMITTER IR 950NM 130MA RADIALManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. presents the LD-271-LH, an infrared emitter designed for applications requiring precise optical sensing and signaling. This radial-mount component operates at a peak wavelength of 950nm, with a typical forward voltage of 1.3V and a maximum forward current of 130mA. Its radiant intensity is rated at a minimum of 16mW/sr at 100mA, and it features a 50° viewing angle. The device is suitable for operation across an extended temperature range of -40°C to 100°C. Commonly utilized in proximity sensing, optical data transmission, and industrial automation, the LD-271-LH is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 50° |
| Current - DC Forward (If) (Max) | 130mA |
| Radiant Intensity (Ie) Min @ If | 16mW/sr @ 100mA |
