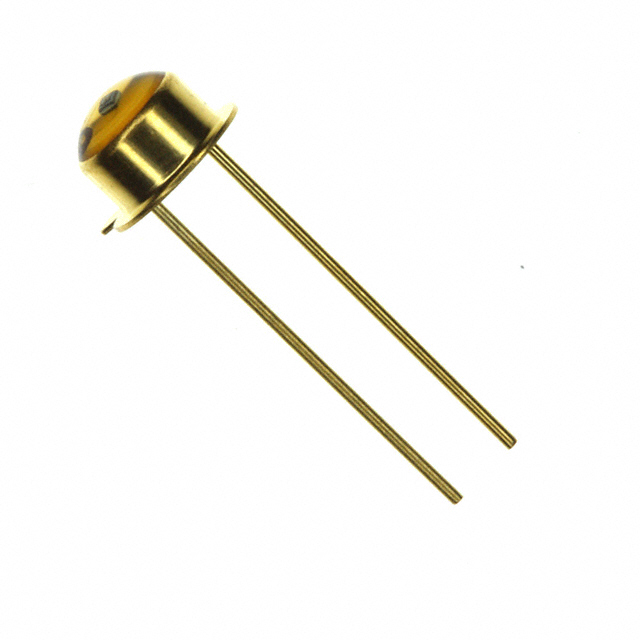

LD 242-2/3
EMITTER IR 950NM 300MA TO-18Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM USA INC. LD-242-2-3 is an infrared (IR) emitter designed for robust performance. This TO-18-2 Metal Can package component operates with a typical forward voltage of 1.3V and a maximum forward current of 300mA. It emits at a wavelength of 950nm, providing a radiant intensity of 4mW/sr at 100mA. The emitter features a wide 80° viewing angle and a top-view orientation. Its through-hole mounting type and operating temperature range of -40°C to 80°C make it suitable for various industrial applications, including security systems, automation, and optical sensing. Supplied in bulk packaging, the LD-242-2-3 is a reliable choice for demanding optical communication and detection needs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-18-2 Metal Can |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 80°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 80° |
| Current - DC Forward (If) (Max) | 300mA |
| Radiant Intensity (Ie) Min @ If | 4mW/sr @ 100mA |
