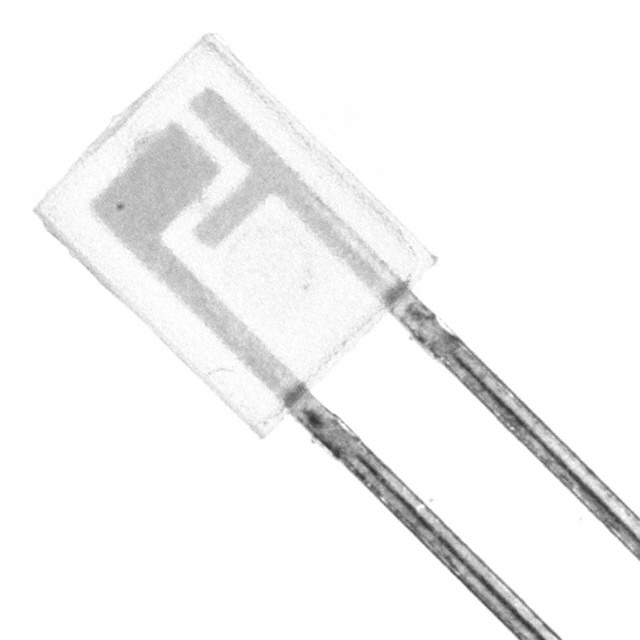

IRL 81A
EMITTER IR 860NM 100MA RADIALManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. presents the IRL-81A, an infrared emitter designed for robust performance in demanding applications. This radial-packaged component emits at a wavelength of 860nm, with a typical forward voltage of 1.3V and a maximum DC forward current of 100mA. Its radiant intensity is rated at a minimum of 25mW/sr at 20mA, delivered with a narrow 24° viewing angle. The IRL-81A is constructed for through-hole mounting, facilitating integration into various PCB designs. Operating across a temperature range of -40°C to 100°C, this emitter finds utility in industries such as automotive, industrial automation, and security systems where reliable IR signaling is critical. Packaging is provided in bulk.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 860nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 24° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 25mW/sr @ 20mA |
