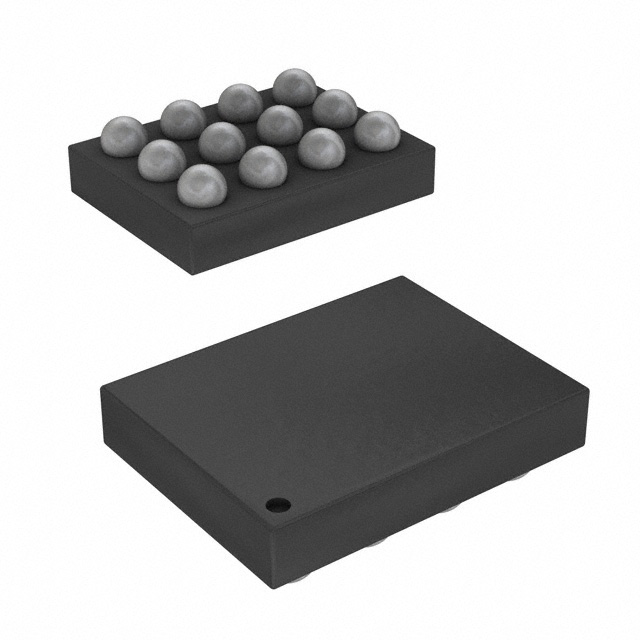

AS3668-BWLT
IC LED DRVR RGLTR PWM 12WLCSPManufacturer: ams-OSRAM USA INC.
Categories: LED Drivers
Quality Control: Learn More
The AS3668-BWLT from ams-OSRAM USA INC. is a 4-output DC-DC regulator featuring a switched-capacitor (charge pump) topology. This LED driver IC is designed for applications requiring efficient regulation and PWM dimming control. With a maximum output current of 25.5mA per channel and an operating frequency of 1MHz, it delivers precise current for LED backlighting. The internal switches facilitate efficient operation, and the 12-WLCSP package, measuring 1.26x1.68mm, is suitable for surface mount assembly. Operating within a temperature range of -30°C to 85°C, the AS3668-BWLT supports supply voltages from 2.7V to 5.5V, with a maximum output voltage of 5.6V. This component is commonly utilized in display backlight systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFBGA, WLCSP |
| Voltage - Output | 5.6V |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Frequency | 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 25.5mA |
| Internal Switch(s) | Yes |
| Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | 12-WLCSP (1.26x1.68) |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
