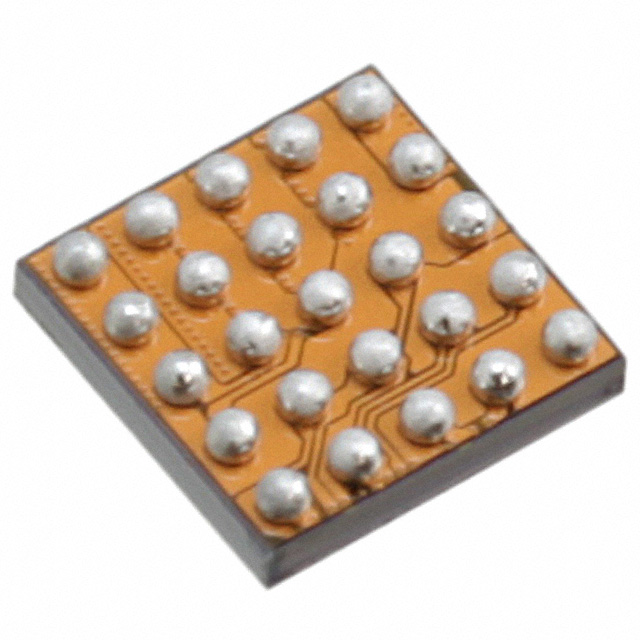

AS3630-ZWLM
IC LED DRVR RGLTR I2C 8A 25WLCSPManufacturer: ams-OSRAM USA INC.
Categories: LED Drivers
Quality Control: Learn More
The ams-OSRAM USA INC. AS3630-ZWLM is a highly integrated DC-DC step-up (boost) LED driver. This device features a single output capable of delivering up to 8A for flash applications, with a maximum output voltage of 10V. The AS3630-ZWLM supports I2C dimming for precise control of LED intensity. It incorporates an internal switch and operates at a high switching frequency of 4MHz, enabling compact external component selection. Designed for surface mount, it is supplied in a 25-WLCSP (2.5x2.5) package on a tape and reel. This component is ideal for applications requiring high-current LED illumination, such as camera flashes in mobile devices and portable electronics. The device operates from a supply voltage range of 2.5V to 4.8V and is rated for operation between -30°C and 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 25-UFBGA, WLCSP |
| Voltage - Output | 10V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 4MHz |
| Type | DC DC Regulator |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Applications | Camera Flash |
| Current - Output / Channel | 8A (Flash) |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 25-WLCSP (2.5x2.5) |
| Dimming | I2C |
| Voltage - Supply (Min) | 2.5V |
| Voltage - Supply (Max) | 4.8V |
