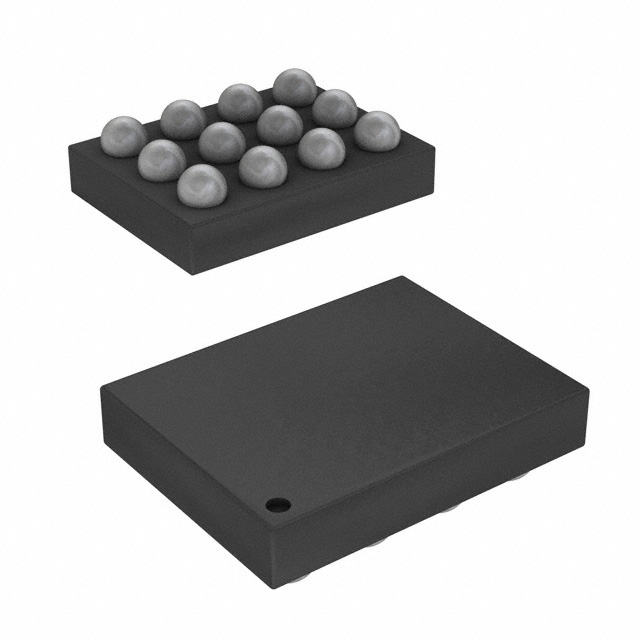

AS3492-ZWLM
IC LED DRIVER RGLTR 25MA 12WLCSPManufacturer: ams-OSRAM USA INC.
Categories: LED Drivers
Quality Control: Learn More
The ams-OSRAM USA INC. AS3492-ZWLM is a 5-output DC-DC boost LED driver featuring integrated switching. This device is designed for backlight applications and offers adjustable dimming capabilities. It operates across a supply voltage range of 2.5V to 5.5V and delivers a regulated 25mA output per channel with a switching frequency of 2MHz. The AS3492-ZWLM is housed in a compact 12-WLCSP (1.7x1.4) package, suitable for surface mounting. Operating within an ambient temperature range of -30°C to 85°C, this component is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFBGA, WLCSP |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 5 |
| Frequency | 2MHz |
| Type | DC DC Regulator |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 25mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 12-WLCSP (1.7x1.4) |
| Dimming | - |
| Voltage - Supply (Min) | 2.5V |
| Voltage - Supply (Max) | 5.5V |
