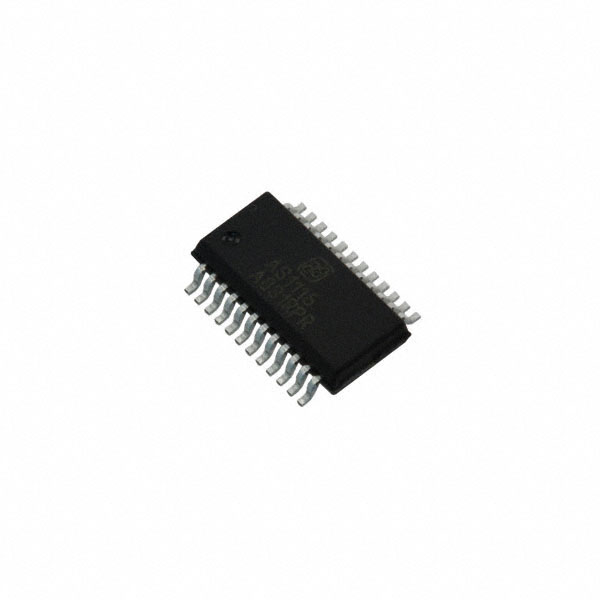

AS1123-BTST
IC LED DRIVER LINEAR 40MA 24QSOPManufacturer: ams-OSRAM USA INC.
Categories: LED Drivers
Quality Control: Learn More
The ams-OSRAM USA INC. AS1123-BTST is a 16-output linear LED driver IC. This device features an internal shift register topology for efficient control and supports dimming functionality. Each output channel can deliver up to 40mA, with a configurable output voltage range from 0V to 5.5V. The AS1123-BTST operates from a supply voltage between 3V and 5.5V and has a maximum clock frequency of 30MHz. It is supplied in a 24-QSOP package, suitable for surface mounting via tape and reel packaging. This component is commonly employed in signage applications. The operating temperature range for this device is -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Voltage - Output | 0V ~ 5.5V |
| Mounting Type | Surface Mount |
| Number of Outputs | 16 |
| Frequency | 30MHz |
| Type | Linear |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Signage |
| Current - Output / Channel | 40mA |
| Internal Switch(s) | Yes |
| Topology | Shift Register |
| Supplier Device Package | 24-QSOP |
| Dimming | - |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
