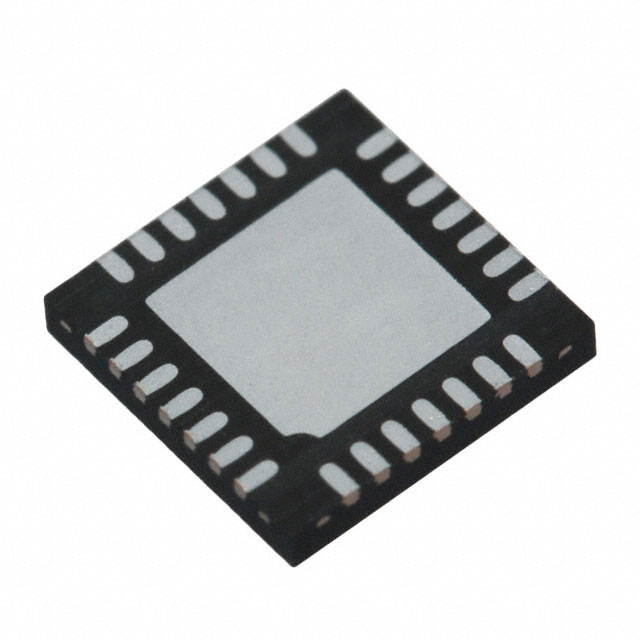

AS1113-BQFR
IC LED DRIVER LINEAR 50MA 28QFNManufacturer: ams-OSRAM USA INC.
Categories: LED Drivers
Quality Control: Learn More
ams-OSRAM USA INC. AS1113-BQFR is a 16-channel linear LED driver with integrated shift registers for simplified control. This device offers precise current output of 50mA per channel, suitable for high-density LED arrays. The AS1113-BQFR features an internal switch and operates within a voltage supply range of 3V to 5.5V, with an output voltage capability of up to 15V. Its 28-QFN (5x5) exposed pad package facilitates efficient surface mounting. With a 50MHz frequency, this driver is well-suited for applications demanding dynamic LED control, such as digital signage and illuminated displays. The device operates across a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 28-WFQFN Exposed Pad |
| Voltage - Output | 15V |
| Mounting Type | Surface Mount |
| Number of Outputs | 16 |
| Frequency | 50MHz |
| Type | Linear |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Signage |
| Current - Output / Channel | 50mA |
| Internal Switch(s) | Yes |
| Topology | Shift Register |
| Supplier Device Package | 28-QFN (5x5) |
| Dimming | - |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
