AS1109-BQFR

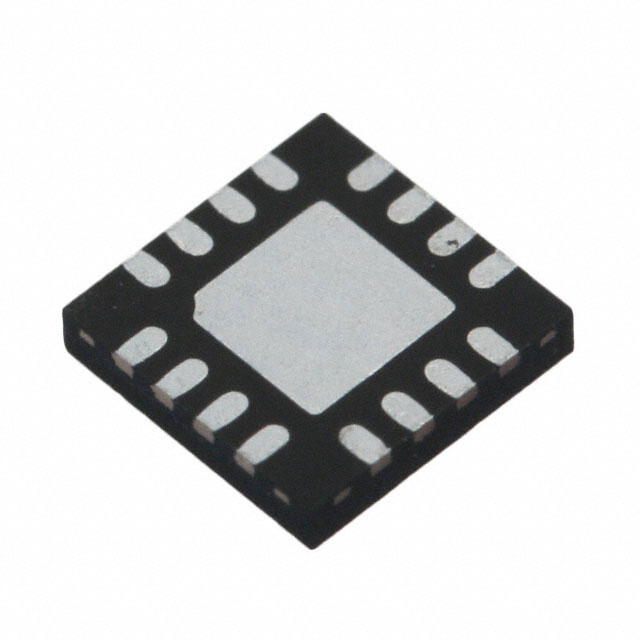

IC LED DRIVER LINEAR 100MA 16QFNManufacturer: ams-OSRAM USA INC.
Categories: LED Drivers
Quality Control: Learn More
The ams-OSRAM USA INC. AS1109-BQFR is an 8-output linear LED driver IC featuring a shift register topology. This device is designed for efficient control of LED arrays, capable of delivering up to 100mA per channel. The AS1109-BQFR incorporates internal switches and supports a maximum output voltage of 15V, with supply voltage ranging from 3.15V to 5.5V. Its 16-QFN (4x4) exposed pad package is suitable for surface mount applications. The component operates within a temperature range of -40°C to 85°C and includes dimming functionality. This versatile driver is well-suited for applications in signage and other display technologies.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 16-WQFN Exposed Pad |
| Voltage - Output | 15V |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Frequency | 50MHz |
| Type | Linear |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Signage |
| Current - Output / Channel | 100mA |
| Internal Switch(s) | Yes |
| Topology | Shift Register |
| Supplier Device Package | 16-QFN (4x4) |
| Dimming | - |
| Voltage - Supply (Min) | 3.15V |
| Voltage - Supply (Max) | 5.5V |
