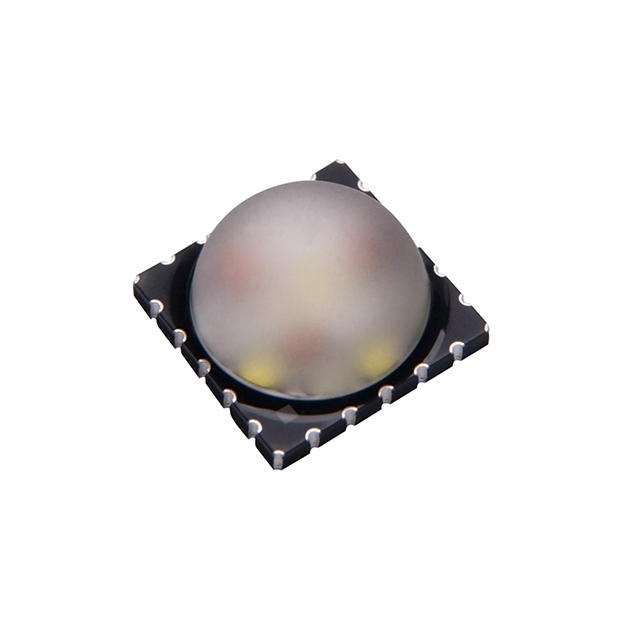

LZC-03MD07-0000_G2
LED RGBW 624/525/457/6658K SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
LED Lighting Color - Red, Green, Blue, White (RGBW) 624nm Red, 525nm Green, 457nm Blue 24-SMD, No Lead Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SMD, No Lead Exposed Pad |
| Color | Red, Green, Blue, White (RGBW) |
| Wavelength | 624nm Red, 525nm Green, 457nm Blue |
| Size / Dimension | 0.354"" L x 0.354"" W (9.00mm x 9.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 7.5V Red, 10.8V Green, 9.6V Blue, 9.6V White |
| Current - Test | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Viewing Angle | 95° |
| Current - Max | 1A Red, 1A Green, 1A Blue, 1A White |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 65 lm/W Red, 57 lm/W Green, 15 lm/W Blue, 89 lm/W White |
| Height - Seated (Max) | 0.220"" (5.60mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 340lm Red, 430lm Green, 100lm Blue, 600lm White |
