LZ4-04MDPB-0000

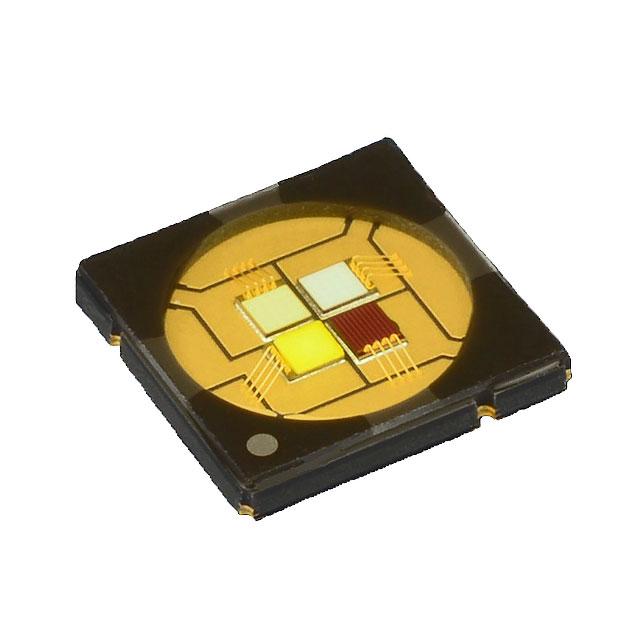

LED LUXIGEN RGBW 624/525/454NMManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. LZ4-04MDPB-0000 is a LuxiGen™ series RGBW LED, featuring individual emitters for Red (624nm), Green (525nm), Blue (454nm), and Cool White (6500K). This surface-mount device, packaged in a 2828 (7070 Metric) footprint, offers a 110° viewing angle. Typical forward voltages are 2.3V (Red), 3.55V (Green), and 3.2V (Blue/White). Maximum drive currents are specified at 2.5A for Red and 3A for Green, Blue, and White, with test currents of 1A for all colors. Luminaire efficiency at test conditions includes 50 lm/W (Red), 62 lm/W (Green), and 93 lm/W (White). Luminous flux values are 115lm (Red), 220lm (Green), 1250mW (Blue), and 298lm (White). The component measures 7.00mm x 7.00mm with a maximum seated height of 1.06mm. It is supplied on tape and reel (TR). This component is suitable for applications in architectural lighting, entertainment lighting, and general illumination.
Additional Information
Series: LuxiGen™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2828 (7070 Metric) |
| Color | Red, Green, Blue, White - Cool (RGBW) |
| Wavelength | 624nm Red, 525nm Green, 454nm Blue, 6500K White |
| Size / Dimension | 0.276"" L x 0.276"" W (7.00mm x 7.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.3V Red, 3.55V Green, 3.2V Blue, 3.2V White |
| Current - Test | 1A Red, 1A Green, 1A Blue, 1A White |
| Viewing Angle | 110° |
| Current - Max | 2.5A Red, 3A Green, 3A Blue, 3A White |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 50 lm/W Red, 62 lm/W Green, 93 lm/W White |
| Height - Seated (Max) | 0.042"" (1.06mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 115lm Red, 220lm Green, 1250mW Blue, 298lm White |
Request a Quote
Clients Also Buy
LZ7-04M100

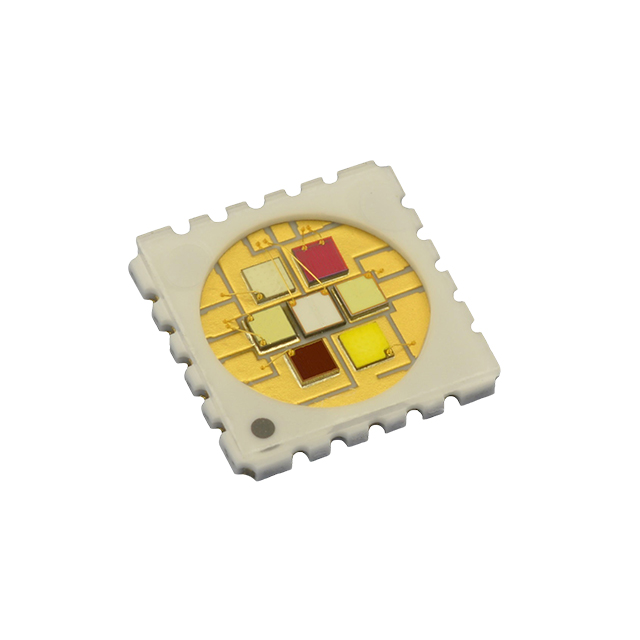

LED LUXIGEN MULT COLOR SMD
