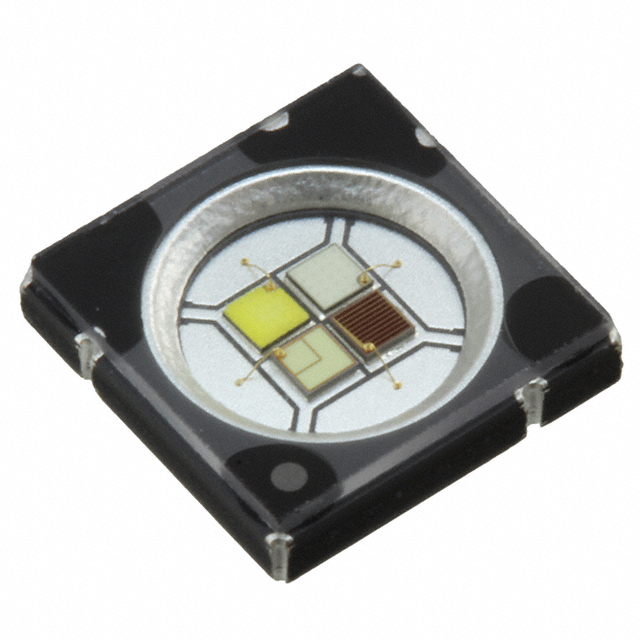

LZ4-04MDCA-0000
LED LUXIGEN LZ4 RGBW SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. LuxiGen™ LZ4 series LZ4-04MDCA-0000 is a surface-mount RGBW LED designed for high-performance lighting applications. This 2828 (7070 Metric) package component delivers precise color mixing with individual emitters for Red (624nm), Green (525nm), Blue (457nm), and Cool White (6500K). The device supports a maximum forward current of 1.5A per color and offers typical forward voltages of 2.5V (Red), 3.6V (Green), and 3.2V (Blue/White) at 700mA test current. Luminescence figures at test conditions include 62lm (Red), 133lm (Green), 24lm (Blue), and 183lm (White), with corresponding efficacy ratings of 35 lm/W (Red), 53 lm/W (Green), 11 lm/W (Green), and 82 lm/W. With a broad 110° viewing angle and a seated height of 0.065" (1.65mm), this LED is suitable for architectural lighting, entertainment lighting, and general illumination systems. The component is supplied on tape and reel.
Additional Information
Series: LuxiGen™ LZ4RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2828 (7070 Metric) |
| Color | Red, Green, Blue, White - Cool (RGBW) |
| Wavelength | 624nm Red, 525nm Green, 457nm Blue, 6500K White |
| Size / Dimension | 0.276"" L x 0.276"" W (7.00mm x 7.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White |
| Current - Test | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Viewing Angle | 110° |
| Current - Max | 1.5A Red, 1.5A Green, 1.5A Blue, 1.5A White |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 35 lm/W Red, 53 lm/W Green, 11 lm/W Green, 82 lm/W |
| Height - Seated (Max) | 0.065"" (1.65mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 62lm Red, 133lm Green, 24lm Blue, 183nm White |
Request a Quote
Clients Also Buy
LZ4-V0UB0R-00U8
EMITTER UV 1A 405NM-410NM MCPB
LZ4-V4MDPB-0000
LED MOD LUXIGEN STARBRD 6335K

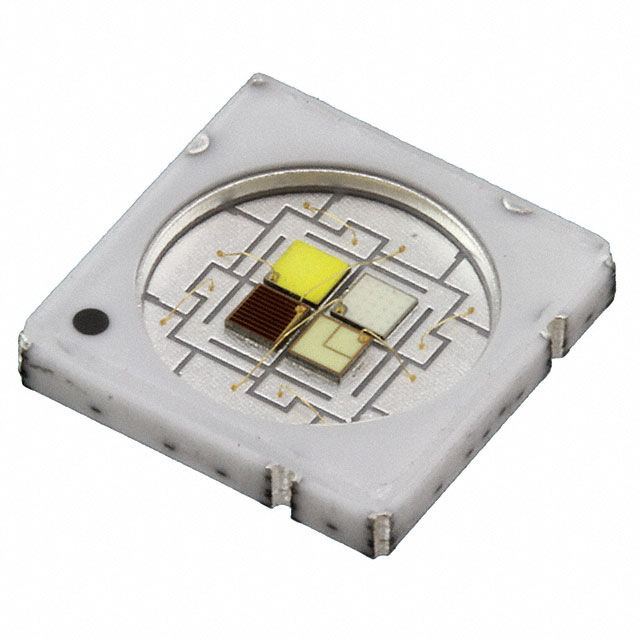

LZ4-04MDC9-0000
