LZ1-00R300-0000
LED LZ1 RED 734NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More

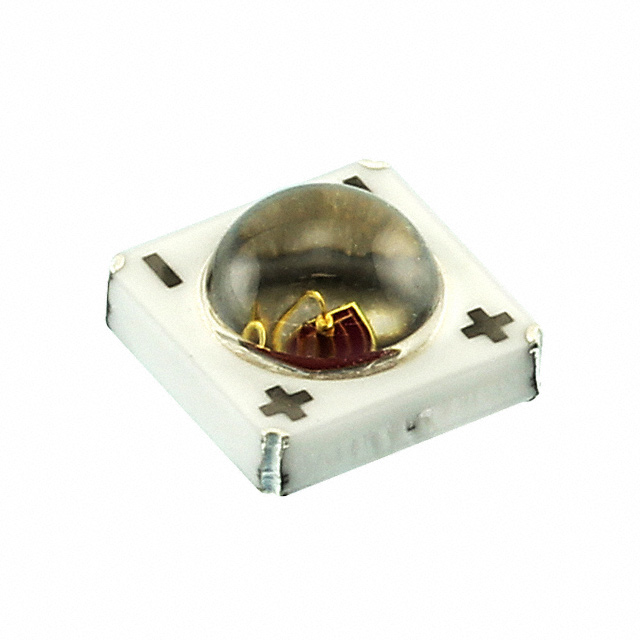

The ams-OSRAM USA INC. LZ1 series LED, part number LZ1-00R300-0000, is a red illumination component featuring a typical wavelength of 734nm with a range of 723nm to 745nm. This surface-mount device is housed in an 1816 (4540 Metric) package, measuring 0.173 inches by 0.173 inches (4.40mm x 4.40mm) with a seated height not exceeding 0.114 inches (2.90mm). Optimized for demanding applications, it supports a maximum continuous current of 1.2A, with a test current of 1A. At this test condition and 25°C, the luminous flux is specified as 531mW, with a range of 262mW to 800mW. The device exhibits a typical forward voltage of 2.4V and a viewing angle of 76 degrees. This component is commonly utilized in industrial automation, medical lighting, and specialized sensing applications. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: LZ1RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1816 (4540 Metric) |
| Color | Red |
| Wavelength | 734nm (723nm ~ 745nm) |
| Size / Dimension | 0.173"" L x 0.173"" W (4.40mm x 4.40mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Current - Test | 1A |
| Viewing Angle | 76° |
| Current - Max | 1.2A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.114"" (2.90mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 531mW (262mW ~ 800mW) |
