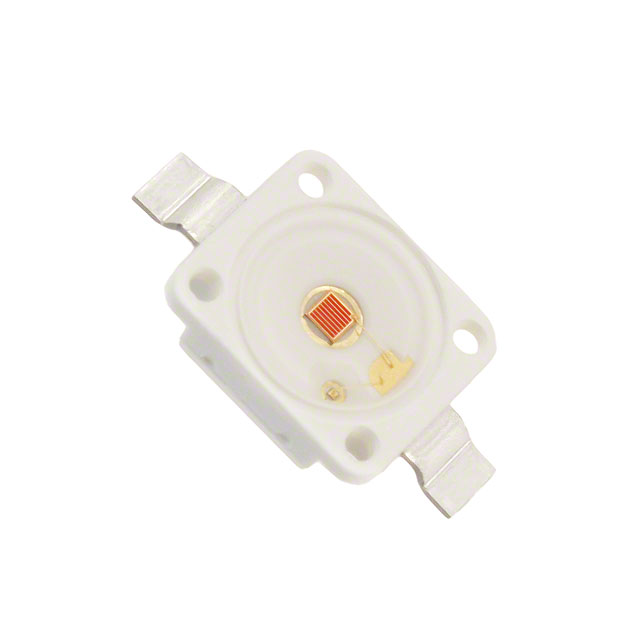

LY W5SM-HZJZ-35-Z
LED YELLOW 590NM CLEAR SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. Golden DRAGON® series LY-W5SM-HZJZ-35-Z is a high-performance yellow LED emitting at 590nm (583nm ~ 592nm). This 2-SMD, Gull Wing package component is designed for surface mounting and features a typical forward voltage of 2.2V with a maximum test current of 400mA, achieving 63 lm/W. It supports a maximum forward current of 1A. The LED has a wide 120° viewing angle and measures 0.276" L x 0.236" W (7.00mm x 6.00mm) with a seated height of 0.079" (2.00mm). Supplied on tape and reel, this component is suitable for automotive lighting, industrial signaling, and general illumination applications where specific spectral output and robust performance are critical.
Additional Information
Series: Golden DRAGON®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Color | Yellow |
| Wavelength | 590nm (583nm ~ 592nm) |
| Size / Dimension | 0.276"" L x 0.236"" W (7.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 400mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 63 lm/W |
| Height - Seated (Max) | 0.079"" (2.00mm) |
