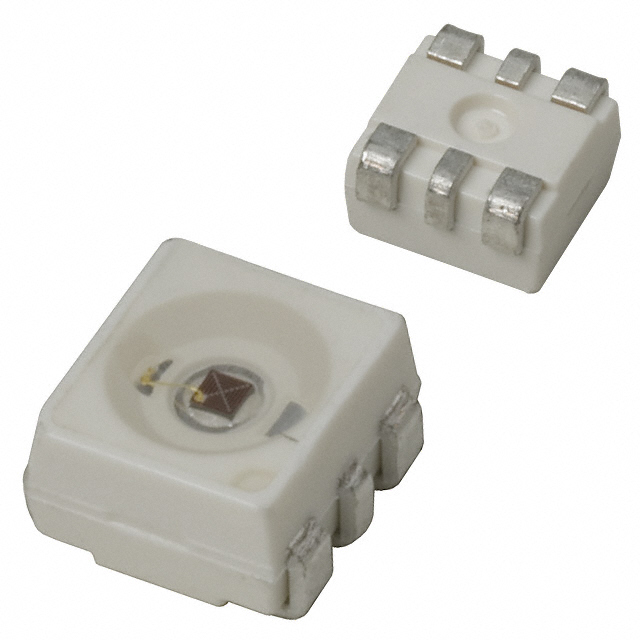

LY G67B-ABCA-26-1-Z
LED 587NM YELLOW CLEAR 6PLCCManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. TOPLED series LY-G67B-ABCA-26-1-Z is a surface-mount yellow LED with a peak wavelength of 587nm, exhibiting a typical forward voltage of 2.2V at 140mA test current. This component features a 6-PLCC package and a 120° viewing angle, providing broad illumination. It is rated for a maximum continuous forward current of 200mA and achieves a luminous efficacy of 21 lm/W at the test current. The compact dimensions are 0.130" L x 0.118" W (3.30mm x 3.00mm), with a seated height not exceeding 0.079" (2.00mm). This device is supplied in tape and reel packaging, suitable for automated assembly processes. Applications include automotive lighting, general illumination, and display backlighting.
Additional Information
Series: TOPLEDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Yellow |
| Wavelength | 587nm (580nm ~ 595nm) |
| Size / Dimension | 0.130"" L x 0.118"" W (3.30mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 140mA |
| Viewing Angle | 120° |
| Current - Max | 200mA |
| Supplier Device Package | 6-PLCC |
| Lumens/Watt @ Current - Test | 21 lm/W |
| Height - Seated (Max) | 0.079"" (2.00mm) |
Request a Quote
