LY G5AP-CXDX-36-1-100-R18-Z
LED TOPLED PLUS YLW 590NM 4PLCCManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More

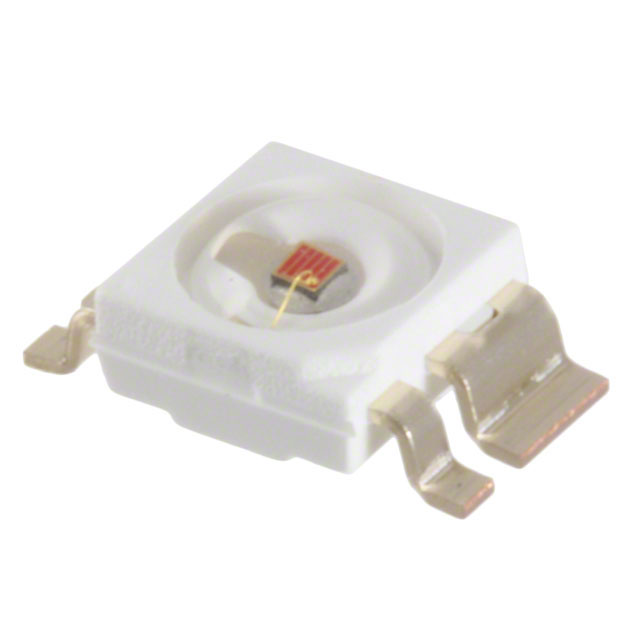

The ams-OSRAM USA INC. Advanced Power TOPLED® Plus LY-G5AP-CXDX-36-1-100-R18-Z is a yellow LED designed for robust illumination applications. This 4-PLCC packaged component features a wavelength of 590nm, with a typical forward voltage of 2.17V at a test current of 100mA. It achieves a luminous efficacy of 67 lm/W under these conditions and has a maximum forward current rating of 200mA. The LED's dimensions are 3.20mm x 3.20mm with a seated height of 1.75mm, utilizing a gull wing surface mount design for secure component placement. Its broad 145° viewing angle makes it suitable for general lighting, automotive, and industrial control panel applications. Supplied in Tape & Reel packaging.
Additional Information
Series: Advanced Power TOPLED® PlusRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Color | Yellow |
| Wavelength | 590nm (583nm ~ 595nm) |
| Size / Dimension | 0.126"" L x 0.126"" W (3.20mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.17V |
| Current - Test | 100mA |
| Viewing Angle | 145° |
| Current - Max | 200mA |
| Supplier Device Package | 4-PLCC |
| Lumens/Watt @ Current - Test | 67 lm/W |
| Height - Seated (Max) | 0.069"" (1.75mm) |
