LV W5AM-JYKY-25-Z

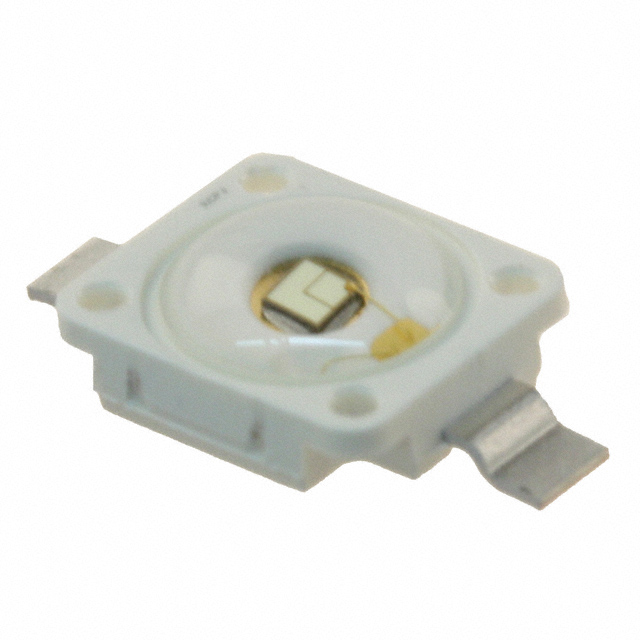

LED DRAGON PLUS GREEN 505NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. Golden DRAGON® Plus LV-W5AM-JYKY-25-Z is a high-performance green LED designed for demanding illumination applications. This surface-mount device features a 2-SMD, Gull Wing package with dimensions of 7.00mm L x 6.00mm W and a seated height of 3.10mm. Emitting at a typical wavelength of 505nm, it achieves a luminous flux of 75lm at 350mA test current and a typical forward voltage of 3.3V. With a maximum current rating of 1A, this LED delivers an impressive efficacy of 65 lm/W at the test conditions (350mA, 25°C). Its wide 170° viewing angle makes it suitable for general lighting, automotive, and architectural lighting solutions. The component is supplied on tape and reel for efficient automated assembly.
Additional Information
Series: Golden DRAGON® PlusRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Color | Green |
| Wavelength | 505nm (Typ) |
| Size / Dimension | 0.276"" L x 0.236"" W (7.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 350mA |
| Viewing Angle | 170° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 65 lm/W |
| Height - Seated (Max) | 0.122"" (3.10mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 75lm (52lm ~ 97lm) |
