LT G6SP-CBEB-25-1-140-R18-Z
LED TOPLED GREEN 525NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More

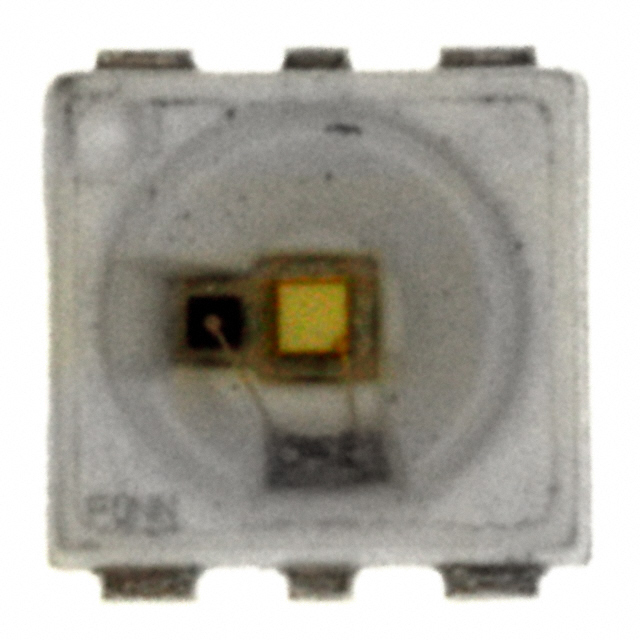

The ams-OSRAM USA INC. Advanced Power TOPLED® LT-G6SP-CBEB-25-1-140-R18-Z is a green LED with a peak wavelength of 525nm (513nm ~ 537nm). This component is housed in a 6-SMD, J-Lead package with dimensions of 3.30mm x 3.00mm and a maximum seated height of 2.10mm. It is supplied on tape and reel for surface mounting. The LED offers a typical forward voltage of 3.3V and can handle a maximum forward current of 250mA, with a test current of 140mA producing a luminous flux of 21lm (12lm ~ 30lm) and a luminous efficacy of 45 lm/W. The viewing angle is 120°. This component is suitable for applications in automotive lighting, industrial signaling, and general illumination.
Additional Information
Series: Advanced Power TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Green |
| Wavelength | 525nm (513nm ~ 537nm) |
| Size / Dimension | 0.130"" L x 0.118"" W (3.30mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 140mA |
| Viewing Angle | 120° |
| Current - Max | 250mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 45 lm/W |
| Height - Seated (Max) | 0.083"" (2.10mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 21lm (12lm ~ 30lm) |
