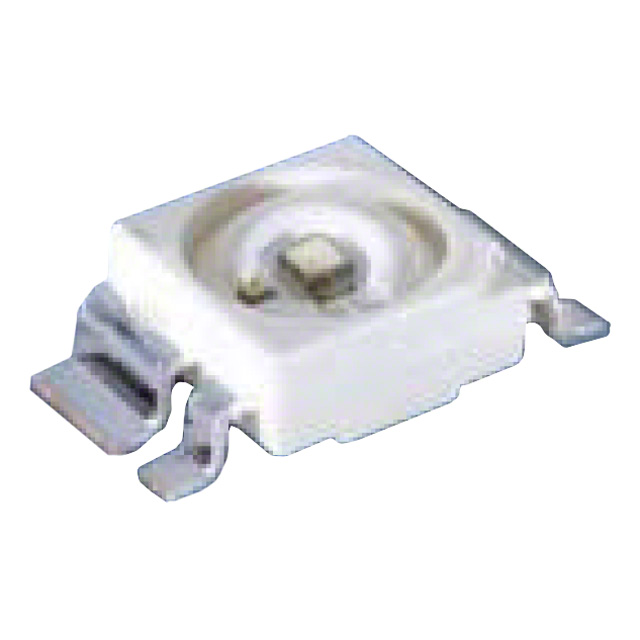

LT G5AP-CZEX-36-1-100-R33-Z
LED TOPLED ADV TRUE GREEN 4PLCCManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
ams-OSRAM USA INC. Advanced Power TOPLED® Plus series, part number LT-G5AP-CZEX-36-1-100-R33-Z, is a green LED designed for demanding illumination applications. This 4-PLCC surface mount component features a 527nm typical wavelength with a 519nm to 543nm range, delivering excellent color consistency. Operating at a typical forward voltage of 3.3V, it supports a maximum forward current of 200mA, with a test current of 100mA achieving 73 lm/W. The 0.126" x 0.126" (3.20mm x 3.20mm) package has a seated height of 0.069" (1.75mm) and a wide 145° viewing angle. This LED is suitable for automotive lighting, industrial signaling, and general display backlighting. Supplied in Tape & Reel packaging.
Additional Information
Series: Advanced Power TOPLED® PlusRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Color | Green |
| Wavelength | 527nm (519nm ~ 543nm) |
| Size / Dimension | 0.126"" L x 0.126"" W (3.20mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 100mA |
| Viewing Angle | 145° |
| Current - Max | 200mA |
| Supplier Device Package | 4-PLCC |
| Lumens/Watt @ Current - Test | 73 lm/W |
| Height - Seated (Max) | 0.069"" (1.75mm) |
