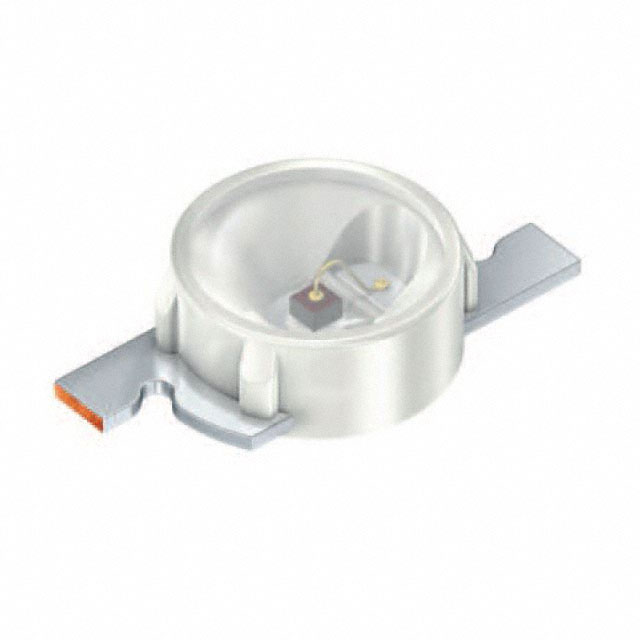

LS P476-Q1R2-1-0-20-R18-Z
LED POINTLED RED 630NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
ams-OSRAM USA INC. PointLED LS-P476-Q1R2-1-0-20-R18-Z is a red light-emitting diode designed for surface mounting. This component features a typical forward voltage of 2V and a peak wavelength of 630nm, with a maximum continuous current rating of 30mA. The LED is housed in a 2-SMD, Flat Leads package with a compact footprint measuring 0.075 inches (1.90mm) in diameter and a seated height of 0.035 inches (0.88mm). It offers a wide viewing angle of 120°. This component is commonly utilized in automotive lighting, industrial indicators, and consumer electronics applications where precise and efficient monochromatic illumination is required. The LS-P476-Q1R2-1-0-20-R18-Z is supplied in Tape & Reel packaging for automated assembly.
Additional Information
Series: PointLEDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Leads |
| Color | Red |
| Wavelength | 630nm (Typ) |
| Size / Dimension | 0.075"" Dia (1.90mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Current - Max | 30mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.035"" (0.88mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | - |
