LR W5SN-JYKY-1-0-700-R18-Z
LED PLAT DRAGON RED 625NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More

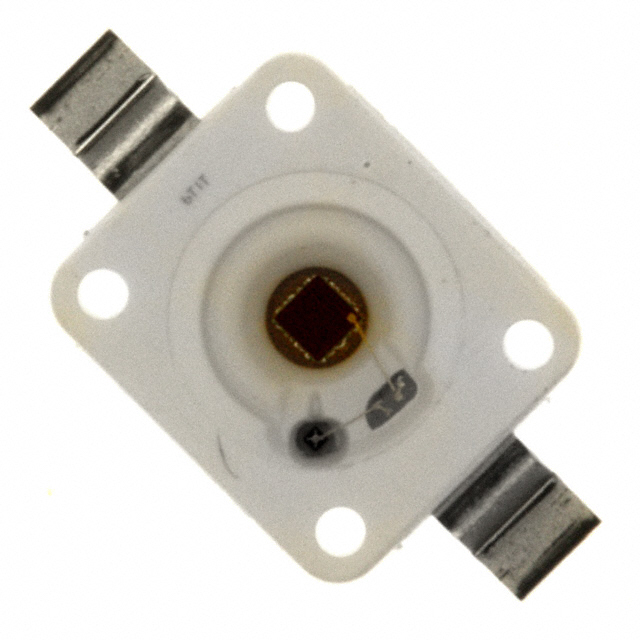

The ams-OSRAM USA INC. Platinum DRAGON series LR-W5SN-JYKY-1-0-700-R18-Z is a high-power red LED designed for demanding illumination applications. Emitting a typical wavelength of 625nm, this component provides a luminous flux of 75 lumens at 700mA test current, with a typical efficiency of 44 lm/W at 25°C. The 2-SMD, Gull Wing package facilitates surface mounting and measures 7.00mm x 6.00mm. It operates with a typical forward voltage of 2.45V and can handle a maximum continuous current of 1A. This LED is suitable for automotive lighting, architectural illumination, and industrial signaling where precise color and high brightness are critical. The component is supplied on a Tape & Reel for automated assembly.
Additional Information
Series: Platinum DRAGONRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Color | Red |
| Wavelength | 625nm (Typ) |
| Size / Dimension | 0.276"" L x 0.236"" W (7.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.45V |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 44 lm/W |
| Height - Seated (Max) | 0.079"" (2.00mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 75lm (52lm ~ 97lm) |
