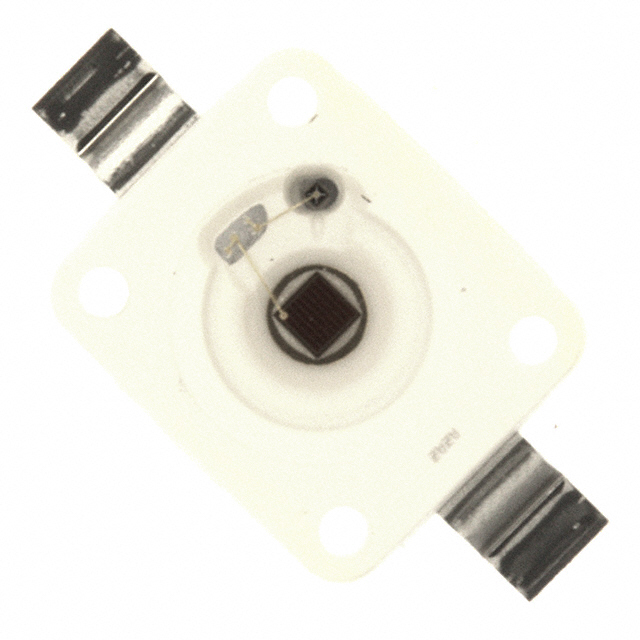

LR W5SM-GZHZ-1-0-400-R18-Z
LED GOLDEN DRAGON RED 625NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. Golden DRAGON® LR-W5SM-GZHZ-1-0-400-R18-Z is a high-performance red LED designed for demanding illumination applications. Featuring a typical wavelength of 625nm, this component delivers a luminous flux of 35 lumens at its rated test current of 400mA, achieving an efficacy of 40 lm/W at 25°C. The LED is housed in a 2-SMD, Gull Wing package with dimensions of 7.00mm x 6.00mm, and a seated height of 2.00mm, suitable for surface mounting. It operates with a typical forward voltage of 2.2V and can handle a maximum current of 1A. With a wide viewing angle of 120°, this LED is commonly employed in automotive lighting, architectural lighting, and general illumination systems where precise color rendering and high brightness are critical. Supplied in Tape & Reel packaging.
Additional Information
Series: Golden DRAGON®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Color | Red |
| Wavelength | 625nm (Typ) |
| Size / Dimension | 0.276"" L x 0.236"" W (7.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 400mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 40 lm/W |
| Height - Seated (Max) | 0.079"" (2.00mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 35lm (24lm ~ 45lm) |
