LO E67F-BADA-24-1-50-R18-Z
LED POWER TOPLED ORG 605NM 4PLCCManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More

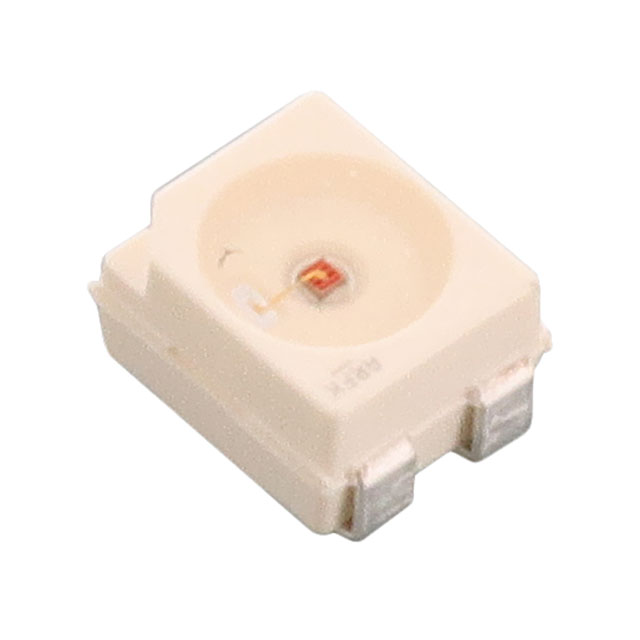

The ams-OSRAM USA INC. Power TOPLED® LO-E67F-BADA-24-1-50-R18-Z is an orange LED designed for surface mount applications within a 4-PLCC package. This component emits light at a peak wavelength of 605nm, with a typical forward voltage of 2.15V and a maximum forward current of 70mA. Tested at 50mA and 25°C, it achieves a luminous flux of 11 lumens (6lm to 15lm) and an efficacy of 102 lm/W. The LED features a wide 120° viewing angle and measures 3.20mm x 2.80mm with a maximum seated height of 2.10mm. It is supplied on a tape and reel for automated assembly. Applications for this component include automotive lighting, industrial signaling, and general illumination systems.
Additional Information
Series: Power TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Orange |
| Wavelength | 605nm (600nm ~ 609nm) |
| Size / Dimension | 0.126"" L x 0.110"" W (3.20mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.15V |
| Current - Test | 50mA |
| Viewing Angle | 120° |
| Current - Max | 70mA |
| Supplier Device Package | 4-PLCC |
| Lumens/Watt @ Current - Test | 102 lm/W |
| Height - Seated (Max) | 0.083"" (2.10mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 11lm (6lm ~ 15lm) |
