LJ CKBP-JZKZ-25-1-350-R18-Z
LED OSLON SIGNAL RED 620NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More

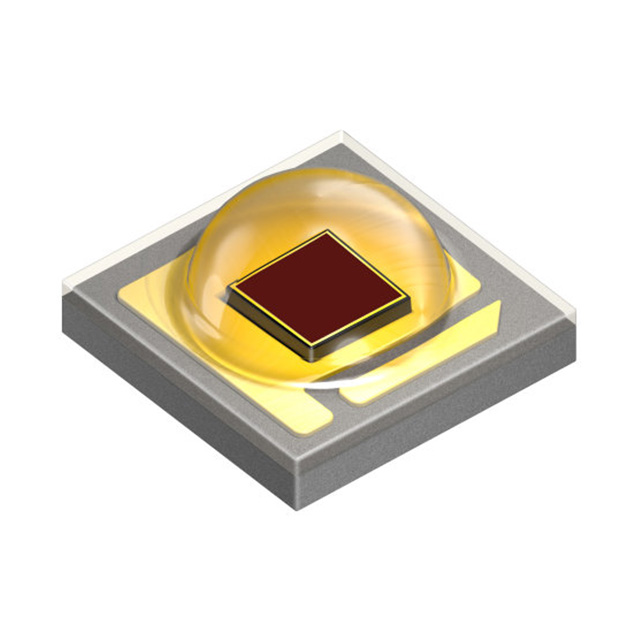

The ams-OSRAM USA INC. OSLON® Signal LJ-CKBP-JZKZ-25-1-350-R18-Z is a high-efficiency red LED designed for demanding lighting applications. This Surface Mount Device (SMD) features a 1212 (3030 Metric) footprint, measuring 3.00mm x 3.00mm, with a maximum seated height of 1.82mm. It emits a characteristic red light with a peak wavelength of 620nm (612nm to 628nm) and a broad 125° viewing angle. At a test current of 350mA and 25°C, it delivers a luminous flux of 87lm (61lm to 112lm) with a forward voltage of 2.15V (typical), achieving an impressive 116 lm/W. This component supports a maximum continuous current of 1A. Supplied on Tape & Reel (TR), the OSLON® Signal LJ-CKBP-JZKZ-25-1-350-R18-Z is well-suited for automotive signaling, general illumination, and industrial lighting systems where robust performance and precise color output are critical.
Additional Information
Series: OSLON® SignalRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | Red |
| Wavelength | 620nm (612nm ~ 628nm) |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.15V |
| Current - Test | 350mA |
| Viewing Angle | 125° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 116 lm/W |
| Height - Seated (Max) | 0.072"" (1.82mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 87lm (61lm ~ 112lm) |
