LJ CKBP-JYKY-36-1-350-R18-Z
LED OSLON SIGNAL RED 624NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More

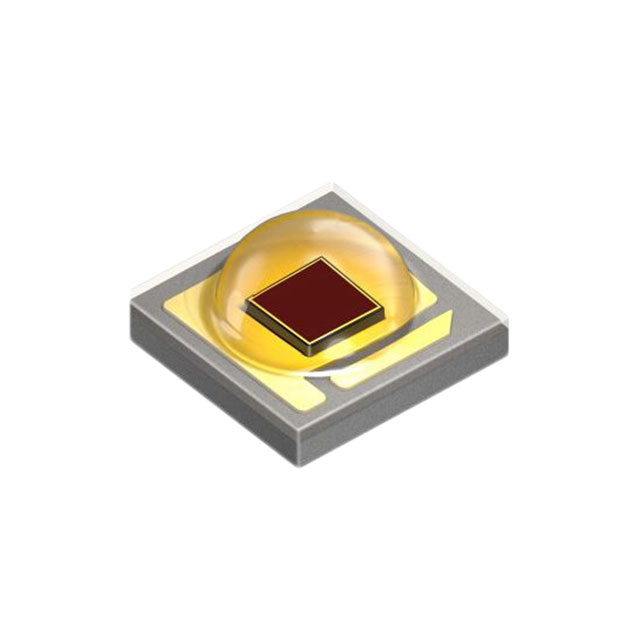

The ams-OSRAM USA INC. OSLON® Signal Series, part number LJ-CKBP-JYKY-36-1-350-R18-Z, is a red LED designed for demanding illumination applications. This Surface Mount device, housed in a 1212 (3030 Metric) package, offers a typical forward voltage of 2.15V and a peak wavelength of 624nm, with a range of 616nm to 632nm. Tested at 350mA, it achieves a luminous flux of 75 lumens and a luminous efficacy of 100 lm/W at 25°C. The LED supports a maximum continuous current of 1A. Its compact dimensions of 3.00mm x 3.00mm and a seated height of 1.82mm make it suitable for space-constrained designs. The OSLON® Signal LED is commonly utilized in automotive lighting, industrial signaling, and general lighting solutions where reliable, high-performance red illumination is critical. This component is supplied in Tape & Reel packaging.
Additional Information
Series: OSLON® SignalRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | Red |
| Wavelength | 624nm (616nm ~ 632nm) |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.15V |
| Current - Test | 350mA |
| Viewing Angle | 125° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 100 lm/W |
| Height - Seated (Max) | 0.072"" (1.82mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 75lm (52lm ~ 97lm) |
