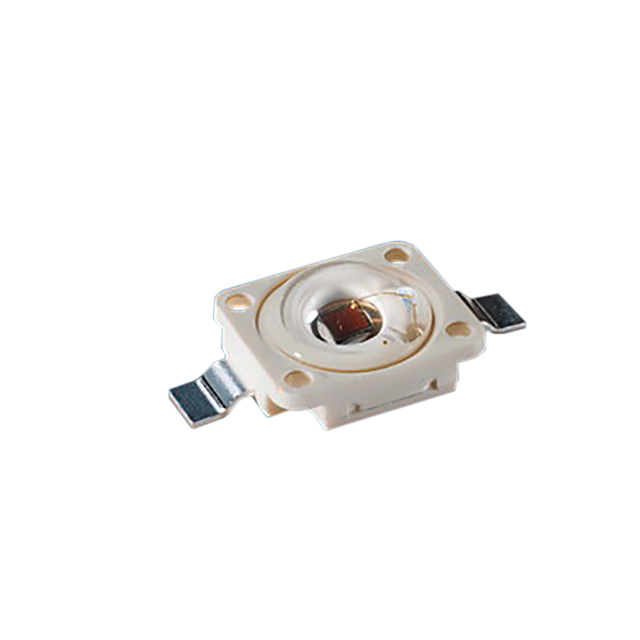

LH W5AM-2T3T-1-0-400-R18
LED DRAGON PLUS RED 656NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. Golden DRAGON® Plus LH-W5AM-2T3T-1-0-400-R18 is a red LED with a peak wavelength of 656nm, operating within a 646nm to 666nm range. This Surface Mount device, presented in a 2-SMD, Gull Wing Exposed Pad package, offers a typical forward voltage of 2.15V. It is rated for a maximum forward current of 1A, with a test current of 400mA, at which point it emits a luminous flux of 358mW (315mW to 400mW). The component features a broad viewing angle of 170° and a seated height of 3.10mm. Its dimensions are 7.00mm in length and 6.00mm in width. Supplied on Tape & Reel, this LED is suitable for applications in automotive lighting, general illumination, and industrial signaling where precise red light emission is critical.
Additional Information
Series: Golden DRAGON® PlusRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | Red |
| Wavelength | 656nm (646nm ~ 666nm) |
| Size / Dimension | 0.276"" L x 0.236"" W (7.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.15V |
| Current - Test | 400mA |
| Viewing Angle | 170° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.122"" (3.10mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 358mW (315mW ~ 400mW) |
