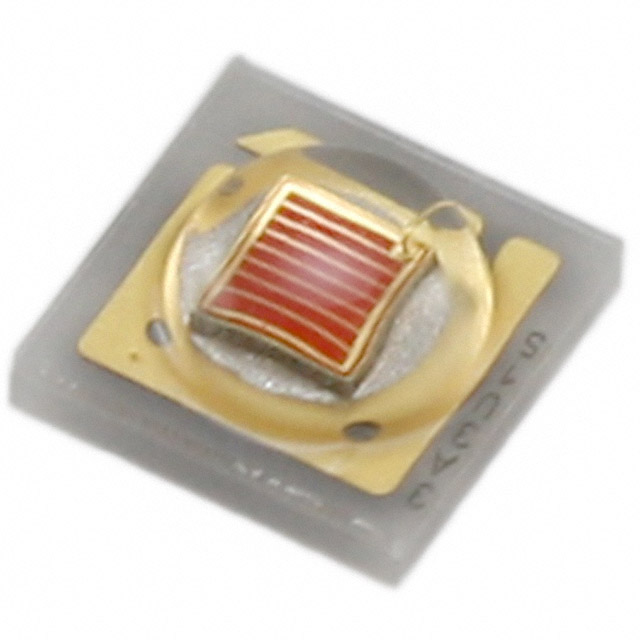

LH CPDP-1T3T-1-Z
LED OSLON SSL RED 645NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
ams-OSRAM USA INC. OSLON SSL series LH-CPDP-1T3T-1-Z is a red LED designed for high-power illumination applications. This surface mount device features a typical wavelength of 645nm and a forward voltage of 2.15V at a test current of 400mA, delivering 340mW of luminous flux. With a maximum current rating of 1A, it is suitable for demanding lighting solutions. The 1212 (3030 Metric) package measures 3.00mm x 3.00mm with a maximum seated height of 1.58mm. Its broad 150° viewing angle makes it versatile for various lighting designs. This LED is commonly utilized in automotive lighting, general illumination, and horticultural lighting sectors. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: OSLON SSLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | Red |
| Wavelength | 645nm (Typ) |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.15V |
| Current - Test | 400mA |
| Viewing Angle | 150° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.062"" (1.58mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 340mW (280mW ~ 400mW) |
