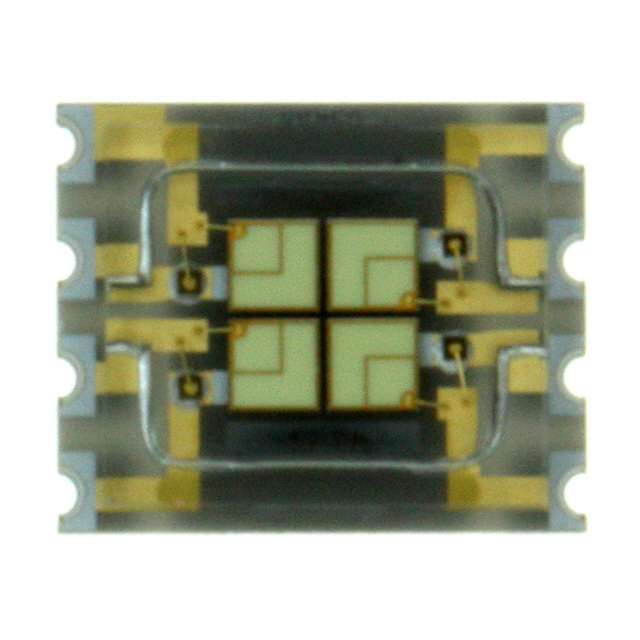

LE T S2W-NYPY-35
LED OSRAM OSTAR GREEN 529NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
ams-OSRAM USA INC. OSRAM OSTAR series green LED, part number LE-T-S2W-NYPY-35. This 8-SMD module component delivers a typical luminous flux of 470lm at 700mA test current and 3.6V forward voltage, with a luminous efficacy of 42 lm/W at 25°C. The peak emission wavelength is 529nm, with a spectral range of 521nm to 537nm. Designed for surface mount applications, this component features an 8-SMD module package with dimensions of 4.68mm x 5.80mm and a maximum seated height of 1.23mm. The maximum continuous current is 1A, and the viewing angle is 120°. This component is commonly utilized in automotive lighting, industrial illumination, and general lighting applications. Packaged in Tape & Reel (TR).
Additional Information
Series: OSRAM OSTARRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD Module |
| Color | Green |
| Wavelength | 529nm (521nm ~ 537nm) |
| Size / Dimension | 0.184"" L x 0.228"" W (4.68mm x 5.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 42 lm/W |
| Height - Seated (Max) | 0.048"" (1.23mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 470lm (330lm ~ 610lm) |
