LE B Q8WP-7A6B-W4
LED OSTAR PROJ BLU 459NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More

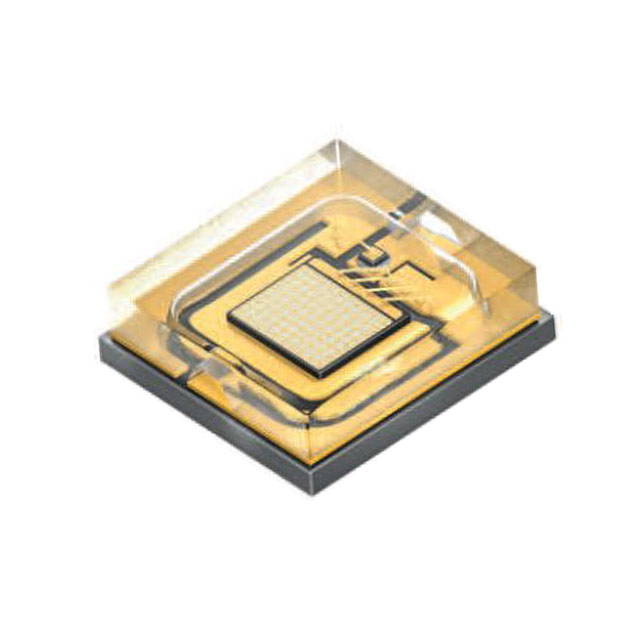

ams-OSRAM USA INC. OSTAR Projection Compact series LE-B-Q8WP-7A6B-W4 is a blue LED designed for demanding illumination applications. This component features a typical wavelength of 459nm and a forward voltage of 3.05V at a test current of 1.4A. It supports a maximum continuous current of 5A. The LED is housed in a 2-SMD, No Lead Exposed Pad package, measuring 0.154" L x 0.144" W (3.90mm x 3.65mm) with a seated height not exceeding 0.053" (1.35mm). With a broad 120° viewing angle, this LED is supplied on Tape & Reel (TR). It is suitable for use in automotive lighting, stage lighting, and projection systems.
Additional Information
Series: OSTAR Projection CompactRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Color | Blue |
| Wavelength | 459nm (Typ) |
| Size / Dimension | 0.154"" L x 0.144"" W (3.90mm x 3.65mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.05V |
| Current - Test | 1.4A |
| Viewing Angle | 120° |
| Current - Max | 5A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.053"" (1.35mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | - |
