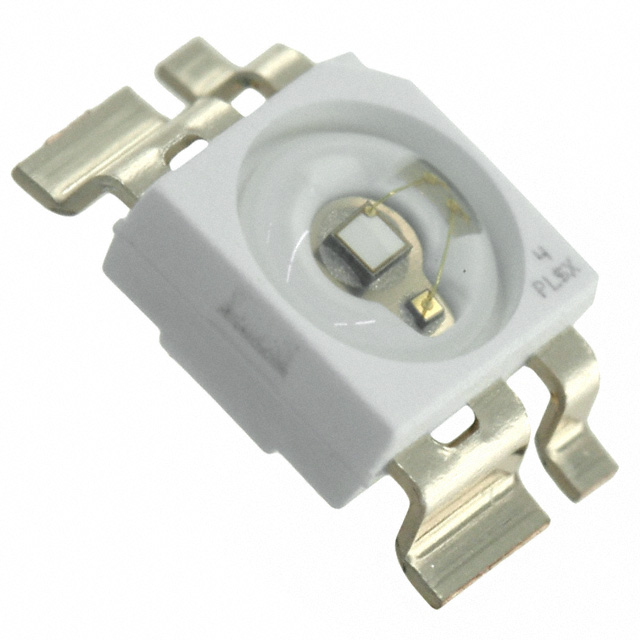

LD G5AP-4M4N-35-1-100-R33-Z
LED TOPLED ADV DEEP BLUE 4PLCCManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
ams-OSRAM USA INC. presents the Advanced Power TOPLED® Plus series, specifically the LD-G5AP-4M4N-35-1-100-R33-Z. This surface mount LED component features a deep blue emission with a typical wavelength of 457nm, covering a range of 448nm to 466nm. Packaged in a 4-SMD, Gull Wing configuration with dimensions of 3.20mm x 3.20mm, it is supplied on tape and reel for automated assembly. The component operates with a forward voltage of 3.3V and has a maximum forward current of 200mA, with a test current specified at 100mA. Its seated height is a maximum of 1.75mm. The wide viewing angle of 145° makes it suitable for various lighting applications, including automotive and general illumination.
Additional Information
Series: Advanced Power TOPLED® PlusRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Color | Blue |
| Wavelength | 457nm (448nm ~ 466nm) |
| Size / Dimension | 0.126"" L x 0.126"" W (3.20mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 100mA |
| Viewing Angle | 145° |
| Current - Max | 200mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.069"" (1.75mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | - |
