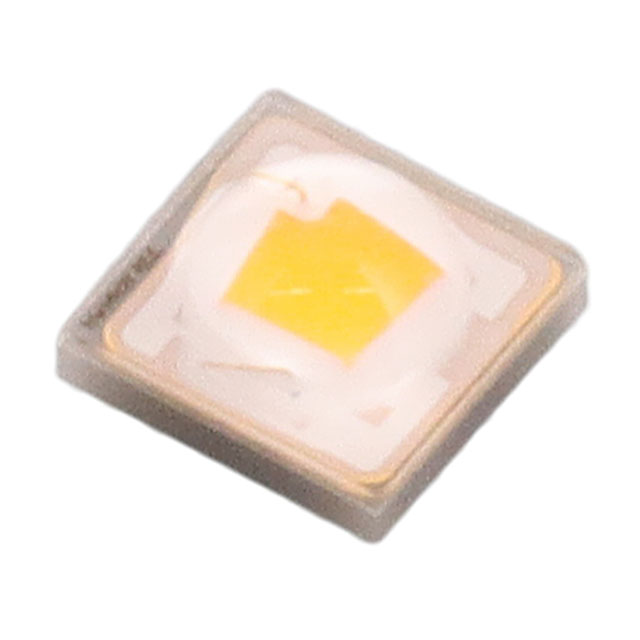

LCY CLBP-KZLY-5F5G-8E8G-350-S
LED OSLON SIGNAL YELLOW SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
ams-OSRAM USA INC. OSLON® Signal LCY-CLBP-KZLY-5F5G-8E8G-350-S is a yellow SMD LED designed for demanding lighting applications. This component offers a typical forward voltage of 2.95V at a test current of 350mA, achieving 120 lm/W and a luminous flux of 124lm at 25°C. The 1212 (3030 Metric) package, measuring 3.00mm x 3.00mm, is suitable for surface mounting and is supplied on tape and reel for high-volume manufacturing. With a maximum current rating of 1A and a wide viewing angle of 125°, this LED is ideal for automotive lighting, general signaling, and industrial illumination systems.
Additional Information
Series: OSLON® SignalRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | Yellow |
| Wavelength | - |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.95V |
| Current - Test | 350mA |
| Viewing Angle | 125° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 120 lm/W |
| Height - Seated (Max) | 0.069"" (1.77mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 124lm (97lm ~ 150lm) |
