LCY CEUP-8L6M-5F5G-8E8G-700-R18-Z-TAY
OSRAMManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. OSLON® Compact CL series LCY-CEUP-8L6M-5F5G-8E8G-700-R18-Z-TAY is a compact, surface-mount LED designed for efficient yellow light output. This component features a 2-SMD, No Lead package measuring 1.90mm x 1.50mm with a seated height of 0.82mm. It operates with a typical forward voltage of 3.125V and can handle a maximum current of 1A, with a test current of 700mA yielding 88 lm/W. The luminous flux at 700mA and 25°C is rated at 192 lumens. With a wide 120° viewing angle, this LED is suitable for applications in automotive lighting, general illumination, and architectural lighting where precise color and high efficacy are required. It is supplied in bulk packaging.
Additional Information
Series: OSLON® Compact CLRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-SMD, No Lead |
| Color | Yellow |
| Wavelength | - |
| Size / Dimension | 0.075"" L x 0.059"" W (1.90mm x 1.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.125V |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 88 lm/W |
| Height - Seated (Max) | 0.032"" (0.82mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 192lm (159lm ~ 224lm) |
Request a Quote
Clients Also Buy

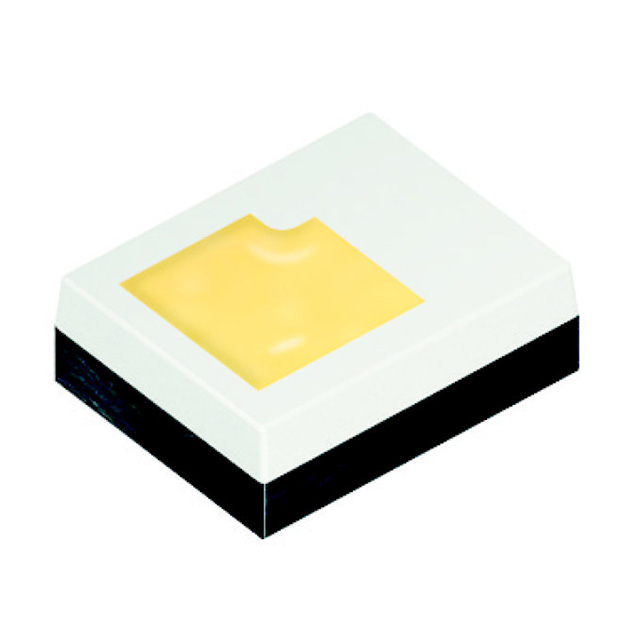

LUW CEUP.CE-5M6N-HNJN-8E8G-700-S
