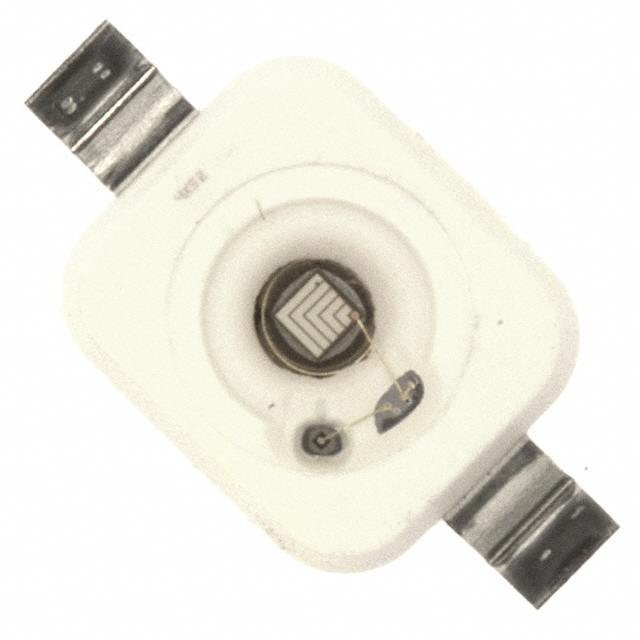

LB W5SM-FYGZ-24-Z
LED GOLDEN DRAGON BLUE 466NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. Golden DRAGON® LB-W5SM-FYGZ-24-Z is a blue LED designed for surface mount applications. This component features a typical forward voltage of 3.2V and operates with a maximum continuous current of 1A, tested at 350mA. The luminous wavelength is centered at 466nm, with an acceptable range of 459nm to 472nm. Housed in a 2-SMD, Gull Wing package with dimensions of 7.00mm x 6.00mm and a maximum seated height of 1.90mm, this LED offers a wide 120° viewing angle. Supplied in Tape & Reel packaging, it is suitable for use in automotive lighting, signage, and architectural illumination.
Additional Information
Series: Golden DRAGON®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Color | Blue |
| Wavelength | 466nm (459nm ~ 472nm) |
| Size / Dimension | 0.276"" L x 0.236"" W (7.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.075"" (1.90mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | - |
