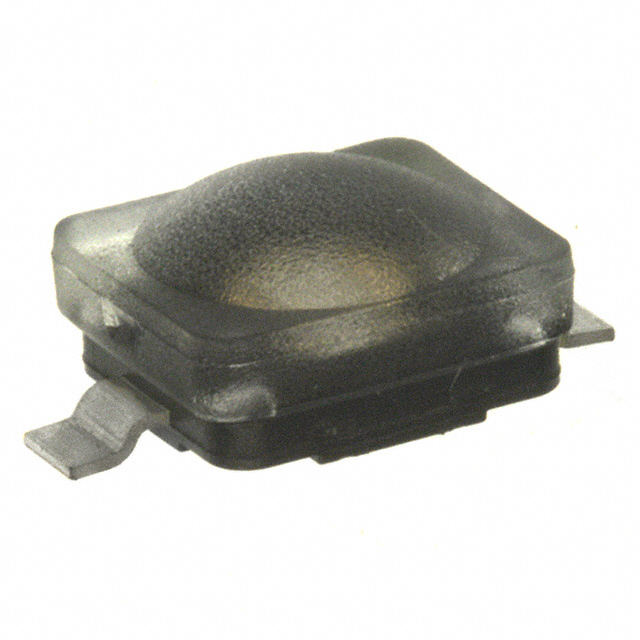

LB W5AP-JYKY-35-Z
LED DIAMOND DRAGON BLU 470NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. Diamond Dragon series LB-W5AP-JYKY-35-Z is a high-power blue LED with a typical forward voltage of 3.5V and a maximum current rating of 2A. This 470nm (464nm ~ 476nm) LED features a luminous flux of 75lm at 1.4A test current, delivering 15 lm/W. Its 2-SMD, Gull Wing package measures 7.70mm x 6.70mm with a maximum seated height of 4.45mm, designed for surface mounting. The wide 140° viewing angle makes it suitable for applications in general lighting, architectural lighting, and automotive lighting. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: Diamond DragonRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Color | Blue |
| Wavelength | 470nm (464nm ~ 476nm) |
| Size / Dimension | 0.303"" L x 0.264"" W (7.70mm x 6.70mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Current - Test | 1.4A |
| Viewing Angle | 140° |
| Current - Max | 2A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 15 lm/W |
| Height - Seated (Max) | 0.175"" (4.45mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 75lm (52lm ~ 97lm) |
Request a Quote
Clients Also Buy

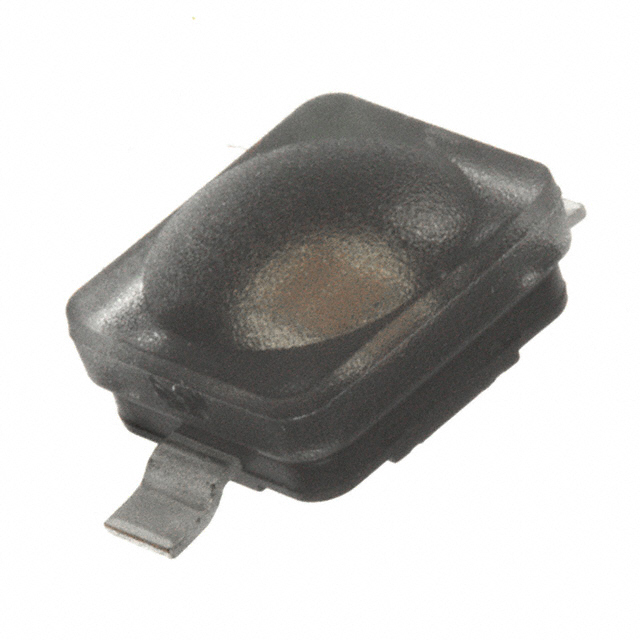

LA W5AP-LXMY-24-Z
LED DIAMOND DRAGON AMB 618NM SMD

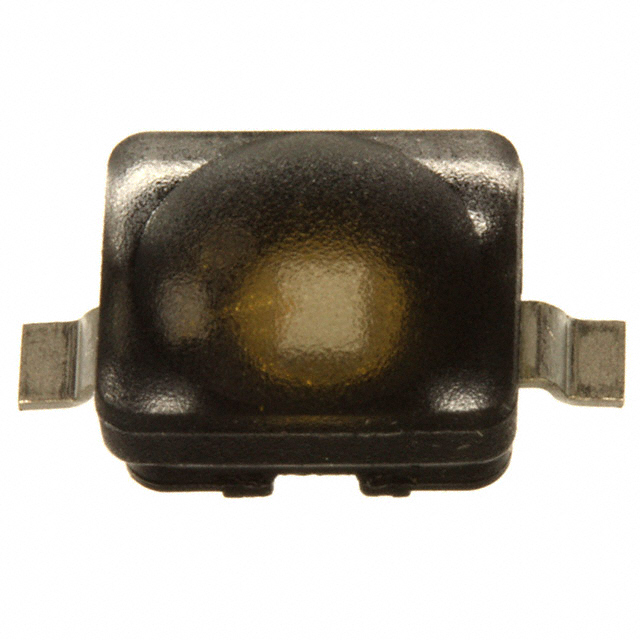

LB W5AP-HZKX-23-Z
LED DIAMOND DRAGON BLU 464NM SMD

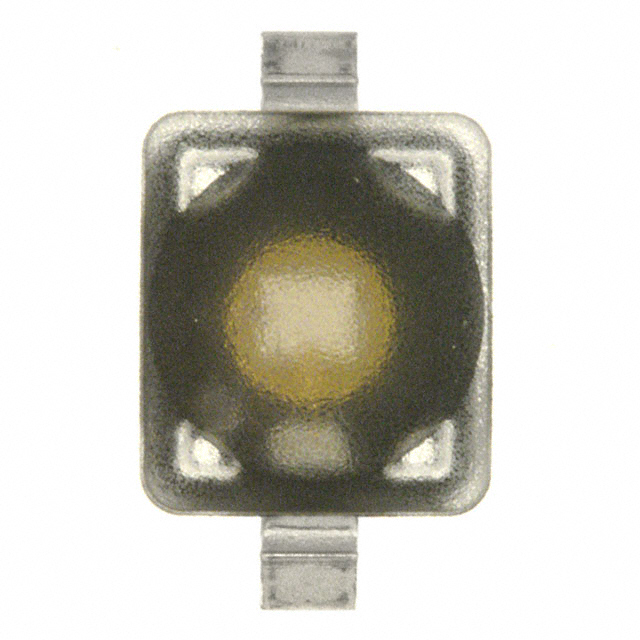

LD W5AP-3V8A-35-Z
