LA CP7P-JXKX-24
LED OSLON SSL AMB 618NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More

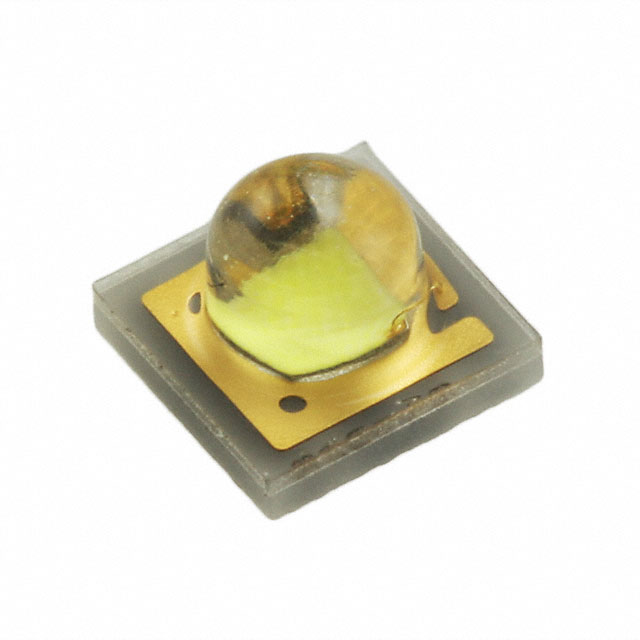

ams-OSRAM USA INC. OSLON SSL series LA-CP7P-JXKX-24 is a surface mount amber LED with a peak wavelength of 618nm (612nm to 624nm). This component, housed in a 1212 (3030 Metric) package, offers a typical forward voltage of 2.25V and a maximum forward current of 1A. Tested at 400mA and 25°C, it achieves 71 lm/W and produces 64 lumens (45lm to 82lm) with a 80° viewing angle. The LED measures 0.118" x 0.118" (3.00mm x 3.00mm) and has a seated height of 0.093" (2.35mm). It is supplied on tape and reel. This component is utilized in applications requiring precise color illumination, including automotive lighting, architectural lighting, and general lighting.
Additional Information
Series: OSLON SSLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | Amber |
| Wavelength | 618nm (612nm ~ 624nm) |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.25V |
| Current - Test | 400mA |
| Viewing Angle | 80° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 71 lm/W |
| Height - Seated (Max) | 0.093"" (2.35mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 64lm (45lm ~ 82lm) |
