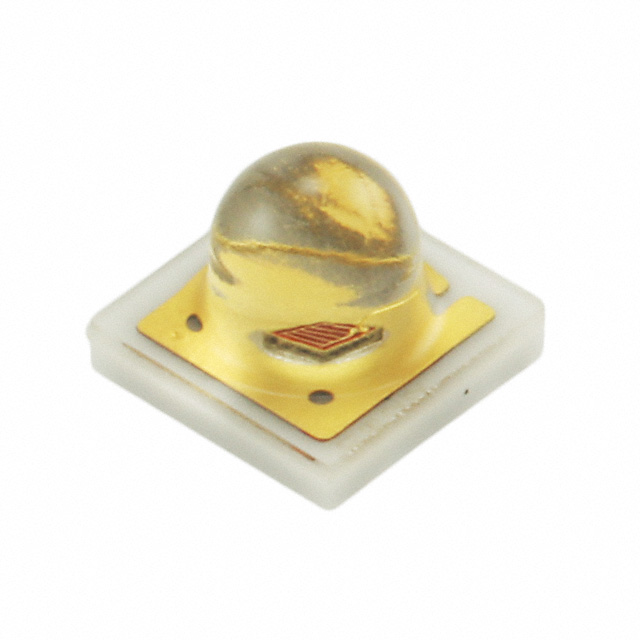

LA CN5M-GBHA-23-3A4A-140-R18-Z-HAN
LED OSLON SX AMBER 616NM 1212Manufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
ams-OSRAM USA INC. OSLON® SX series LED, part number LA-CN5M-GBHA-23-3A4A-140-R18-Z-HAN. This amber LED emits light at a peak wavelength of 616nm. It features a typical forward voltage of 2.125V and a maximum continuous forward current of 200mA, with a tested current of 140mA. At 140mA and 25°C, it achieves 97 lm/W efficacy and 29lm luminous flux. The component is housed in a 1212 (3030 Metric) surface mount package measuring 3.00mm x 3.00mm with a seated height of 2.55mm. The viewing angle is 60°. This LED is commonly utilized in automotive lighting, general lighting, and signaling applications. Supplied on tape and reel.
Additional Information
Series: OSLON® SXRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | Amber |
| Wavelength | 616nm |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.125V |
| Current - Test | 140mA |
| Viewing Angle | 60° |
| Current - Max | 200mA |
| Supplier Device Package | 1212 |
| Lumens/Watt @ Current - Test | 97 lm/W |
| Height - Seated (Max) | 0.100"" (2.55mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 29lm (22lm ~ 36lm) |
