GT VJLPE1.13-MRMS-45-1S2C-700-R18-XX
OSLONManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More

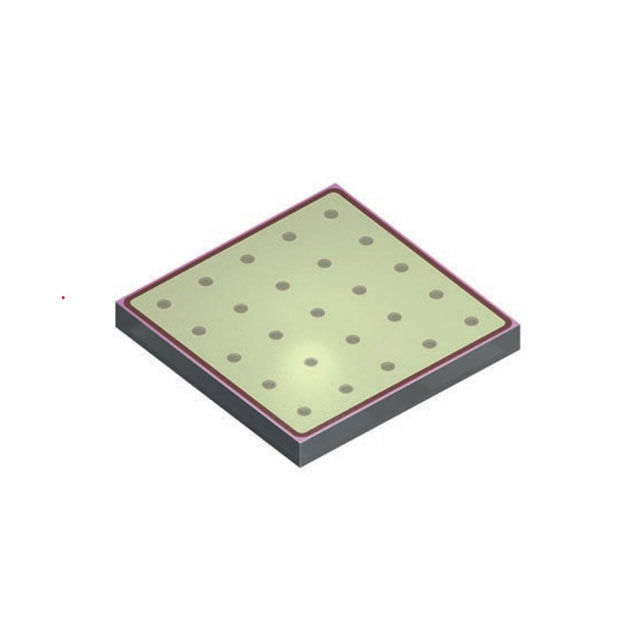

The ams-OSRAM USA INC. OSLON® Pure 1010 GT-VJLPE1-13-MRMS-45-1S2C-700-R18-XX is a green LED designed for high-performance illumination applications. This component features a typical forward voltage of 2.8V and operates with a test current of 700mA, achieving a luminous flux of 225lm. With a maximum forward current of 1A and a power efficacy of 115 lm/W at the test current, it offers efficient light output. The LED emits a peak wavelength of 526nm (523nm ~ 528nm) and has a broad viewing angle of 120°. Packaged in a compact 0404 (1010 Metric) surface-mount case, measuring 1.08mm x 1.08mm, it is suitable for space-constrained designs. This component is utilized in automotive lighting, architectural illumination, and display backlighting.
Additional Information
Series: OSLON® Pure 1010RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 0404 (1010 Metric) |
| Color | Green |
| Wavelength | 526nm (523nm ~ 528nm) |
| Size / Dimension | 0.042"" L x 0.042"" W (1.08mm x 1.08mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | 0404 |
| Lumens/Watt @ Current - Test | 115 lm/W |
| Height - Seated (Max) | 0.006"" (0.14mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 225lm (210lm ~ 240lm) |
