GT DASPA2.13-HQHS-35-MP-100-R18
LED GREEN MID-POWER SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More

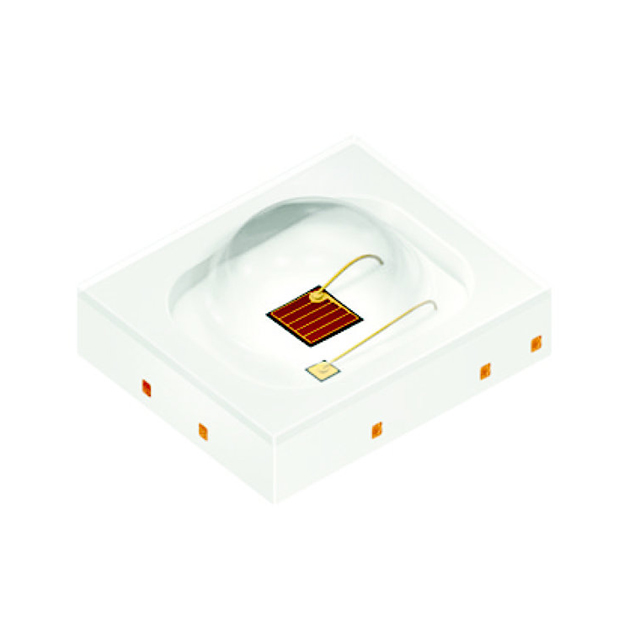

ams-OSRAM USA INC. OSCONIQ® P 2226 series green mid-power surface mount LED, part number GT-DASPA2-13-HQHS-35-MP-100-R18. This component features a typical wavelength of 525nm and a luminous flux of 35lm at 100mA test current. It offers a luminous efficacy of 127 lm/W at 25°C. The device is housed in a 1009 (2622 Metric) SMD package with dimensions of 2.60mm x 2.20mm and a maximum seated height of 1.31mm. It is supplied on tape and reel and has a maximum forward current rating of 250mA. The typical forward voltage is 2.75V, with a wide viewing angle of 110°. This LED is suitable for general illumination and automotive lighting applications.
Additional Information
Series: OSCONIQ® P 2226RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1009 (2622 Metric) |
| Color | Green |
| Wavelength | 525nm (Typ) |
| Size / Dimension | 0.102"" L x 0.087"" W (2.60mm x 2.20mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.75V |
| Current - Test | 100mA |
| Viewing Angle | 110° |
| Current - Max | 250mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 127 lm/W |
| Height - Seated (Max) | 0.052"" (1.31mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 35lm (Typ) |
