GT DASPA1.13-GSGU-26-1-100-R18
LED DURIS P5 GREEN 528NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More

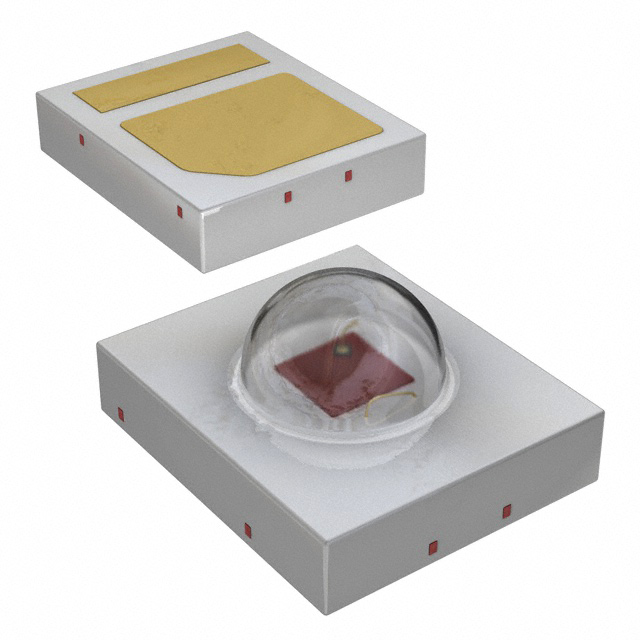

The ams-OSRAM USA INC. DURIS® P 5 series GT-DASPA1-13-GSGU-26-1-100-R18 is a green LED designed for general lighting applications. This surface mount component, housed in a 1009 (2622 Metric) package, emits a peak wavelength of 528nm, with a typical forward voltage of 3.25V at 100mA test current. It achieves a luminous flux of 25 lumens at 100mA and 100mA test conditions, yielding 77 lm/W. The LED has a maximum forward current of 250mA and a wide viewing angle of 120°. Its compact dimensions of 0.102" L x 0.087" W (2.60mm x 2.20mm) and a seated height of 0.052" (1.31mm) make it suitable for space-constrained designs. This component is supplied in Tape & Reel packaging.
Additional Information
Series: DURIS® P 5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1009 (2622 Metric) |
| Color | Green |
| Wavelength | 528nm (513nm ~ 543nm) |
| Size / Dimension | 0.102"" L x 0.087"" W (2.60mm x 2.20mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.25V |
| Current - Test | 100mA |
| Viewing Angle | 120° |
| Current - Max | 250mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 77 lm/W |
| Height - Seated (Max) | 0.052"" (1.31mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 25lm (22lm ~ 28lm) |
