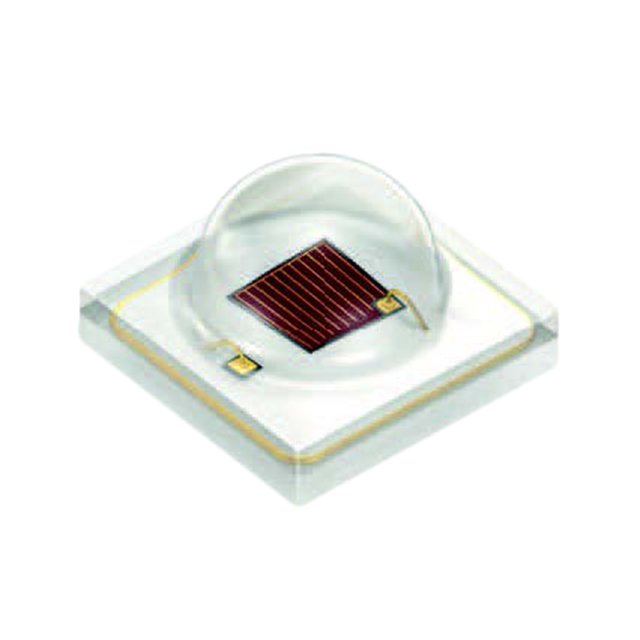

GH CSSPM1.24-4T2U-1-0-350-R18
LED OSLON SSL120 RED 656NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More
LED Lighting Color OSLON® SSL 120 Red 656nm (646nm ~ 666nm) 1212 (3030 Metric)
Additional Information
Series: OSLON® SSL 120RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | Red |
| Wavelength | 656nm (646nm ~ 666nm) |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.15V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.073"" (1.86mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 530mW (400mW ~ 560mW) |
