GB CS8PM1.13-HYHZ-35-0-350-R18
LED OSLON SSL80 BLUE 470NM SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Color Lighting
Quality Control: Learn More

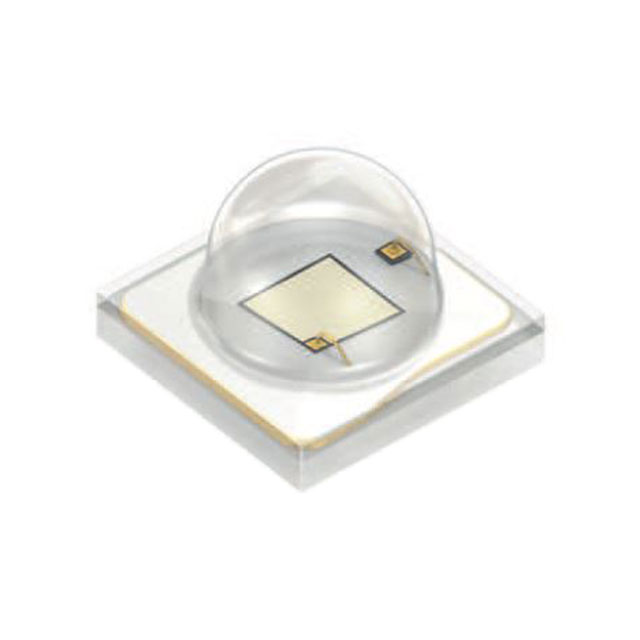

The ams-OSRAM USA INC. OSLON® SSL 80 series GB-CS8PM1-13-HYHZ-35-0-350-R18 is a blue LED designed for high-performance lighting applications. This Surface Mount device, housed in a 1212 (3030 Metric) package, features a typical wavelength of 470nm and a forward voltage of 2.85V. It delivers a luminous flux of 39lm at a test current of 350mA and a temperature of 25°C, with a luminous efficacy of 39 lm/W. The maximum continuous current is rated at 1A. With a viewing angle of 80°, this LED is suitable for applications in automotive lighting, architectural lighting, and general illumination. The component is supplied in Tape & Reel packaging.
Additional Information
Series: OSLON® SSL 80RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | Blue |
| Wavelength | 470nm (Typ) |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.85V |
| Current - Test | 350mA |
| Viewing Angle | 80° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 39 lm/W |
| Height - Seated (Max) | 0.091"" (2.31mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 39lm (33lm ~ 45lm) |
