LZP-L4MD00-0000
LED MOD LZP RGBW STARBRD 6450KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

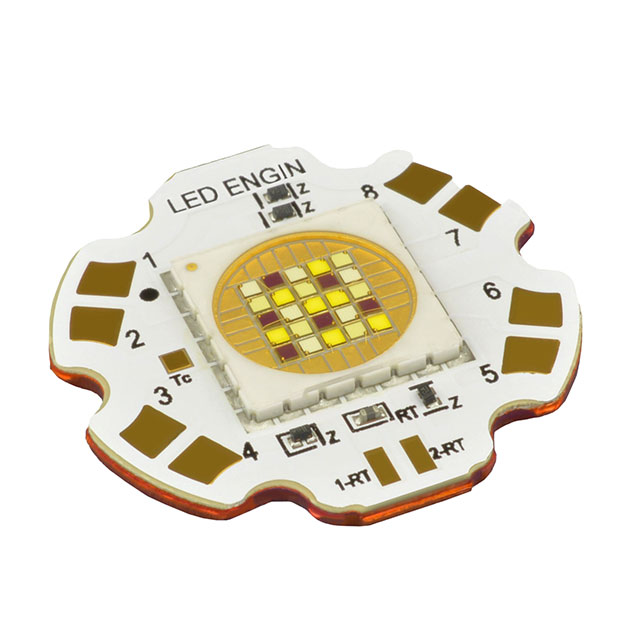

ams-OSRAM USA INC. LED Module, LZP Series, LZP-L4MD00-0000. This RGBW LED module offers a 6450K cool white option with a typical CRI of 75. Configured on a starboard layout, it features individual forward voltages for Red (15V), Green (21.6V), Blue (19.2V), and White (22.4V) at 700mA test current. Maximum current per channel is 1A. The module has a 120° viewing angle and a 27.60mm diameter with a 2.80mm height. The Light Emitting Surface (LES) measures 11.70mm x 11.70mm. This component is suitable for applications in general lighting, architectural lighting, and display backlighting.
Additional Information
Series: LZPRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | Red, Green, Blue, White - Cool |
| Wavelength | 624nm Red, 525nm Green, 457nm Blue |
| Size / Dimension | 27.60mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 15V Red, 21.6V Green, 19.2V Blue, 22.4V White |
| Height | 2.80mm |
| Current - Test | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1A Red, 1A Green, 1A Blue, 1A White |
| Lumens/Watt @ Current - Test | 47 lm/W Red, 53 lm/W Green, 13 lm/W Blue, 93 lm/W |
| CCT (K) | 6450K |
| CRI (Color Rendering Index) | 75 (Typ) |
| Light Emitting Surface (LES) | 11.70mm L x 11.70mm W |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 493lm Red, 800lm Green, 170lm Blue, 1453lm White |
