LZC-C0WW0R-0030
LED MOD LZC WM WH STARBRD 3000KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

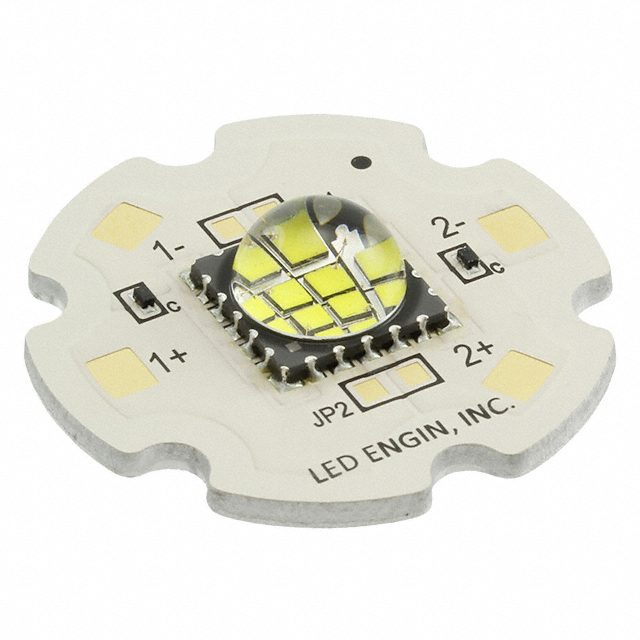

ams-OSRAM USA INC. LZC series LED module, part number LZC-C0WW0R-0030, offers a warm white illumination with a 3000K correlated color temperature and a typical Color Rendering Index of 85. This white LED module features a 8.20mm diameter Light Emitting Surface (LES) and a domed lens, providing a wide 110° viewing angle. Engineered for robust performance, it operates at a typical forward voltage of 18.9V and can handle a maximum current of 1A, with a test current of 2 x 700mA yielding an efficacy of 140 lm/W. The module delivers a luminous flux of 1900 lumens at the specified test conditions. Its 28.30mm diameter and 6.90mm height make it suitable for various lighting applications, including general illumination and architectural lighting. Supplied in trays.
Additional Information
Series: LZCRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 28.30mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 18.9V |
| Height | 6.90mm |
| Current - Test | 2 x 700mA |
| Viewing Angle | 110° |
| Lens Type | Domed |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | 140 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 85 (Typ) |
| Light Emitting Surface (LES) | 8.20mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1900lm (1357lm ~ 2350lm) |
