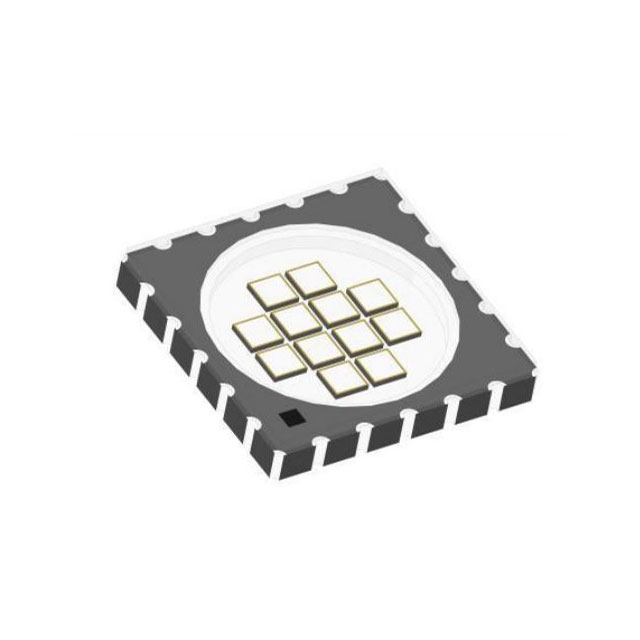

LZC-C0GW00-0030
LED MOD LUXIGEN WH STARBRDManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
ams-OSRAM USA INC. LuxiGen™ LZC series LED module, LZC-C0GW00-0030. This warm white LED module features a 3000K color temperature with a 3-step MacAdam ellipse for tight color consistency. Designed with a high Color Rendering Index (CRI) of 98, it delivers exceptional color quality. The module utilizes a domed lens and has a Light Emitting Surface (LES) diameter of 8.20mm, with an overall diameter of 28.30mm and a height of 6.90mm. Tested at 25°C with 2 x 700mA, it achieves 51 lm/W and a luminous flux of 1391 lumens. Maximum forward current is 1A, with a typical forward voltage of 19.4V. This LED module is commonly found in architectural lighting, retail display lighting, and high-end residential lighting applications. Supplied in trays.
Additional Information
Series: LuxiGen™ LZCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 28.30mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 19.4V |
| Height | 6.90mm |
| Current - Test | 2 x 700mA |
| Viewing Angle | 110° |
| Lens Type | Domed |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | 51 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 98 |
| Light Emitting Surface (LES) | 8.20mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1391lm (1085lm ~ 1696lm) |
