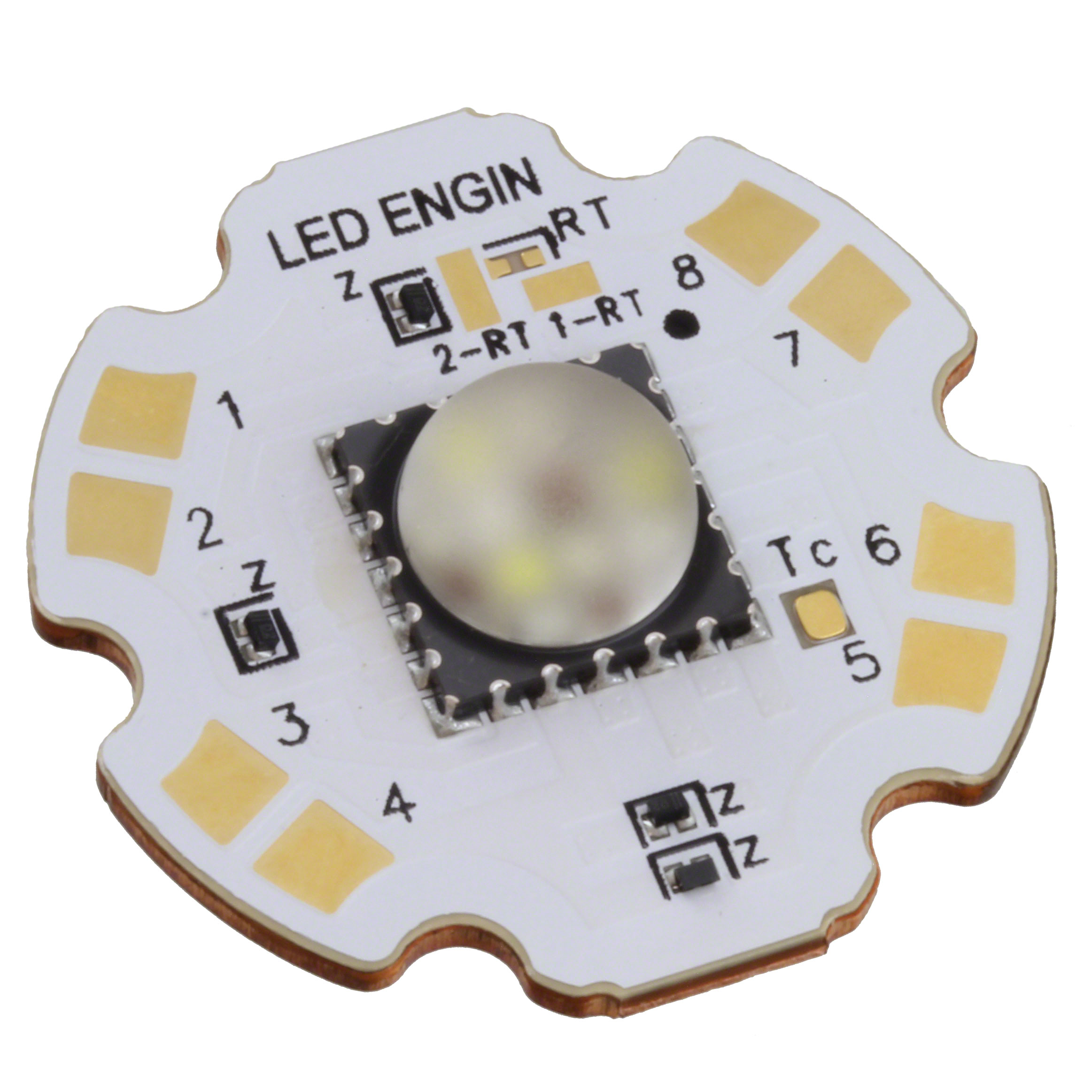

LZC-B3MD07-0000
LED MOD LZC RGBW STARBRD 5500KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The ams-OSRAM USA INC. LZC series LED module, part number LZC-B3MD07-0000, is a high-performance RGBW LED module featuring a Cool White (5500K) component. This module utilizes a Starboard configuration with a 95° viewing angle and a domed lens type. It offers a Light Emitting Surface (LES) diameter of 8.20mm and a total diameter of 28.00mm, with a height of 6.80mm. Forward voltage characteristics are 7V for Red and 10.5V for Green, Blue, and White at typical operating conditions. Maximum current handling is 1A per color, with test currents of 700mA. Lumens per watt at test current are 49 lm/W (Red), 43 lm/W (Green), 12 lm/W (Blue), and 71 lm/W (White). Luminous flux values at test current are 240lm (Red), 318lm (Green), 89lm (Blue), and 525lm (White). Wavelengths are 624nm (Red), 525nm (Green), and 457nm (Blue). This component is suitable for applications in general lighting and architectural lighting. It is supplied in trays.
Additional Information
Series: LZCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | Red, Green, Blue, White - Cool (RGBW) |
| Wavelength | 624nm Red, 525nm Green, 457nm Blue |
| Size / Dimension | 28.00mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 7V Red, 10.5V Green, 10.5V Blue, 10.5V White |
| Height | 6.80mm |
| Current - Test | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Viewing Angle | 95° |
| Lens Type | Domed |
| Current - Max | 1A Red, 1A Green, 1A Blue, 1A White |
| Lumens/Watt @ Current - Test | 49 lm/W Red, 43 lm/W Green, 12 lm/W Blue, 71 lm/W White |
| CCT (K) | 5500K |
| CRI (Color Rendering Index) | 75 |
| Light Emitting Surface (LES) | 8.20mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 240lm Red, 318lm Green, 89lm Blue, 525lm White |
