LZ9-M0SW00-0000
LED MOD LZ9 WHT STARBOARD 5300KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The ams-OSRAM USA INC. LZ9 series LED module, part number LZ9-M0SW00-0000, offers a cool white light with a Correlated Color Temperature (CCT) of 5300K. This high-performance module features a 6.20mm diameter Light Emitting Surface (LES) and a domed lens, providing a wide 110° viewing angle. Designed for demanding applications, it delivers a typical luminous flux of 1391 lumens at a forward voltage of 9.7V. The module is rated for a maximum continuous current of 800mA, with test conditions at 3 x 700mA yielding 68 lm/W. Its typical Color Rendering Index (CRI) of 88 ensures accurate color representation. Applications include general lighting, architectural lighting, and automotive lighting where consistent and bright illumination is critical. The component is supplied in a tray for efficient handling.
Additional Information
Series: LZ9RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 9.7V |
| Height | 5.50mm |
| Current - Test | 3 x 700mA |
| Viewing Angle | 110° |
| Lens Type | Domed |
| Current - Max | 800mA |
| Lumens/Watt @ Current - Test | 68 lm/W |
| CCT (K) | 5300K |
| CRI (Color Rendering Index) | 88 (Typ) |
| Light Emitting Surface (LES) | 6.20mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1391lm (1085lm ~ 1696lm) |
Request a Quote
Clients Also Buy

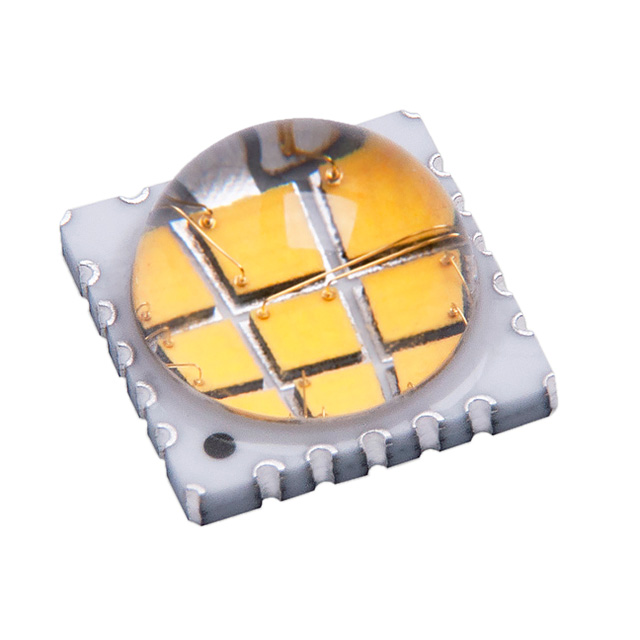

LZ9-00CW00-0055
LED COOL WHITE 5500K 70CRI 24SMD
LZ9-00CW00-0065
LED LZ9 COOL WHITE 6500K SMD

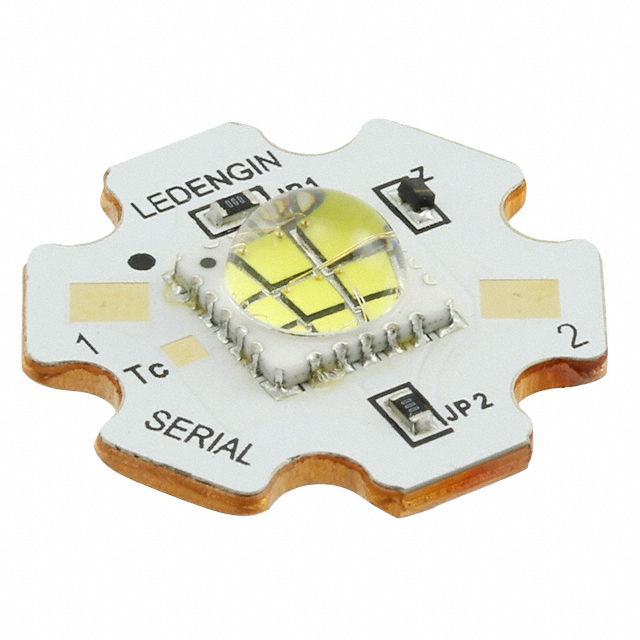

LZ9-J0CW00-0000
