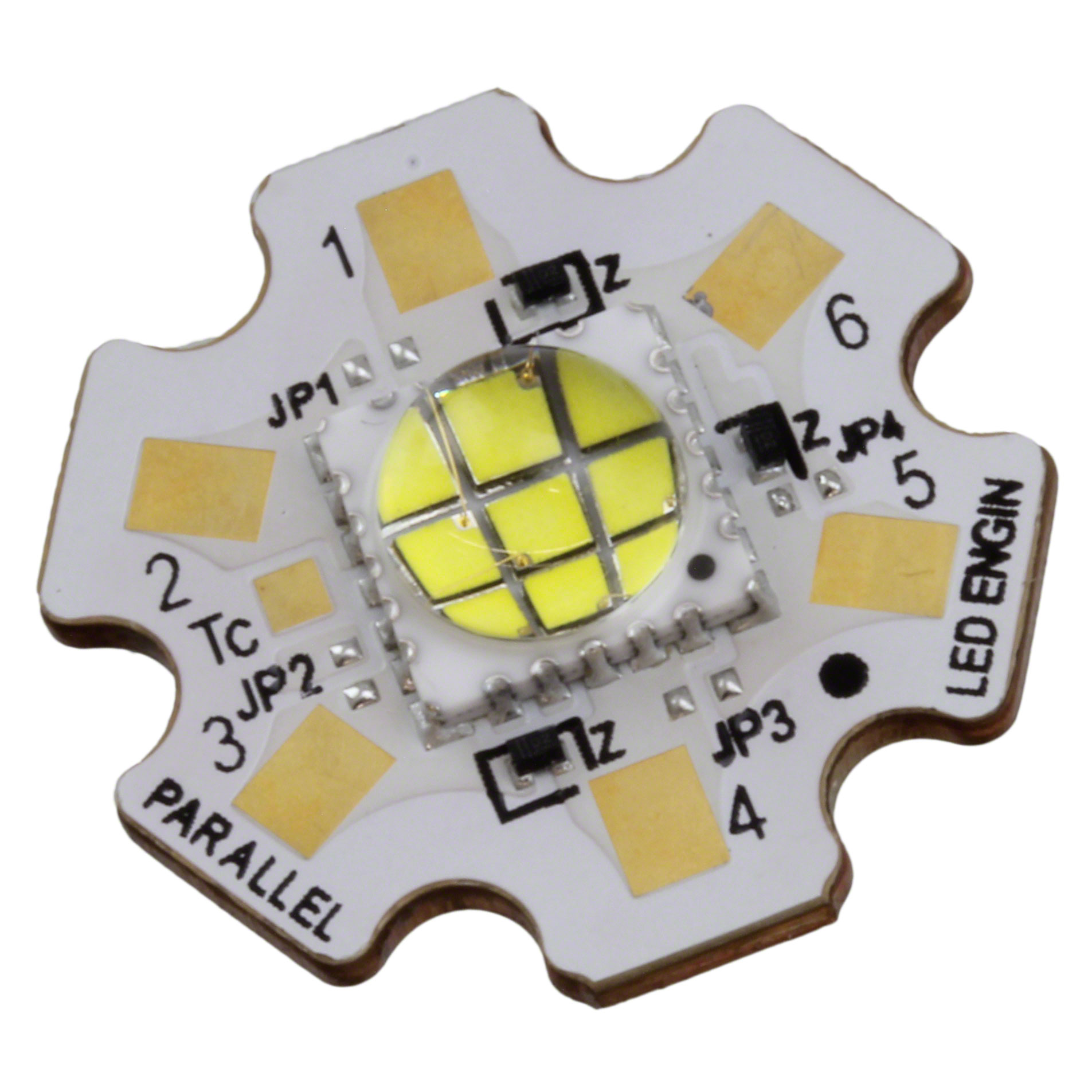

LZ9-M0CW00-0065
LED MOD LZ9 WHT STARBOARD 6500KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The ams-OSRAM USA INC. LZ9 series LED module, part number LZ9-M0CW00-0065, delivers a cool white light at a correlated color temperature (CCT) of 6500K. This high-performance module features a 6.20mm diameter Light Emitting Surface (LES) and a domed lens, providing a wide 110° viewing angle. Rated for a maximum current of 800mA, this module exhibits a typical forward voltage of 9.7V and achieves 85 lm/W at a test current of 3 x 700mA. Luminous flux ranges from 1357lm to 2120lm, with a typical output of 1739lm at 25°C. With a Color Rendering Index (CRI) of 70 and a compact 19.90mm diameter, this module is suitable for demanding illumination applications in automotive and general lighting sectors. The component is supplied in a tray package.
Additional Information
Series: LZ9RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 9.7V |
| Height | 5.50mm |
| Current - Test | 3 x 700mA |
| Viewing Angle | 110° |
| Lens Type | Domed |
| Current - Max | 800mA |
| Lumens/Watt @ Current - Test | 85 lm/W |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | 6.20mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1739lm (1357lm ~ 2120lm) |
